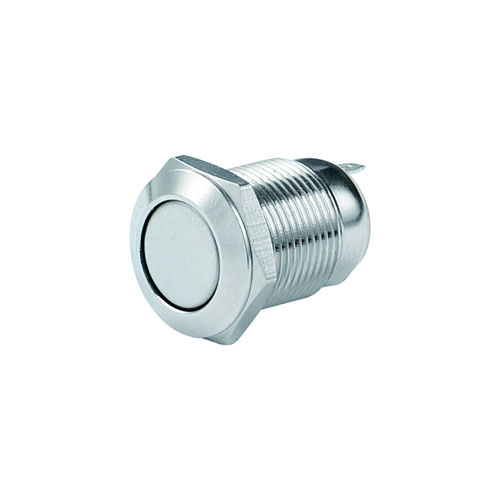

6A/250VAC, 10A/125VAC ON OFF Anti Vandal Swtich YL12C-B11P
Features
Made of brass nickel plated material, strong and durable. High-grade appearance and nice touch feeling. Adopt rubber ring and hexagonal nut fixed, anti dust and waterproof, which make it great for outdoors use. Copper plating silver terminals for good conductive properties. Momentary type, push it-on, release it-off. Metal button head durable for longstanding press.
Specification
| Product Name | Push button switch |
| Model | YL12C-B11P |
| Mounting Hole | 12mm |
| Operation Type | momentary |
| Switch Combination | 1NO1NC |
| Head Type | Flat head |
| Terminal type | Terminal |
| Enclosure Material | Brass nickel |
| Delivery Days | 3-7 days after payment received |
| Contact Resistance | 50 mΩ max |
| Insulation Resistance | 1000MΩ Min |
| Dielectric Intensity | 2000VAC |
| Operating Temperature | -20°C ~+55°C |
| Wire Connector / Wire soldering | Acceptable and with fast shipping |
| Accessories | Nut, Rubber ,Waterproof O-ring |
Drawing
product description
Secure your equipment with our Anti-Vandal Switch, built to withstand the toughest environments. Crafted from high-quality materials, this switch is designed to deter tampering and deliver consistent performance in challenging conditions.
The Anti-Vandal Switch features a durable metal housing that can resist harsh weather conditions and physical abuse. Its momentary action ensures precise control, and the optional LED illumination adds visibility in low-light situations.
When security is paramount, our Anti-Vandal Switch is the go-to choice. Install it with confidence, knowing your equipment is protected against unauthorized access.
application: Outdoor Equipment
When it comes to outdoor equipment like security cameras and gate control panels, our Anti-Vandal Switches shine. Their rugged construction and resistance to weather conditions make them the ideal choice for ensuring these vital systems remain operational even in harsh outdoor environments.
