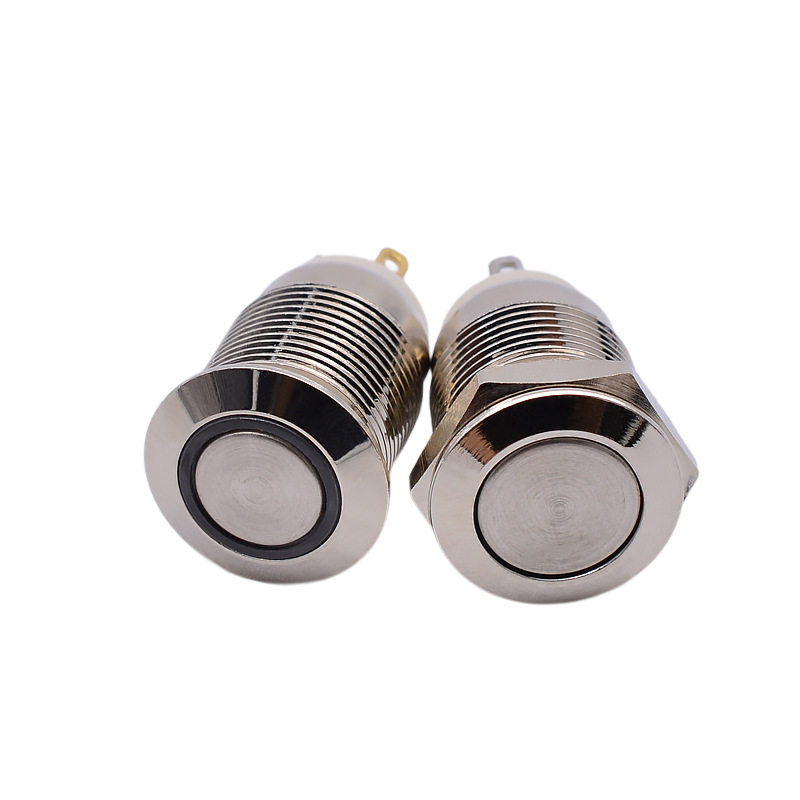

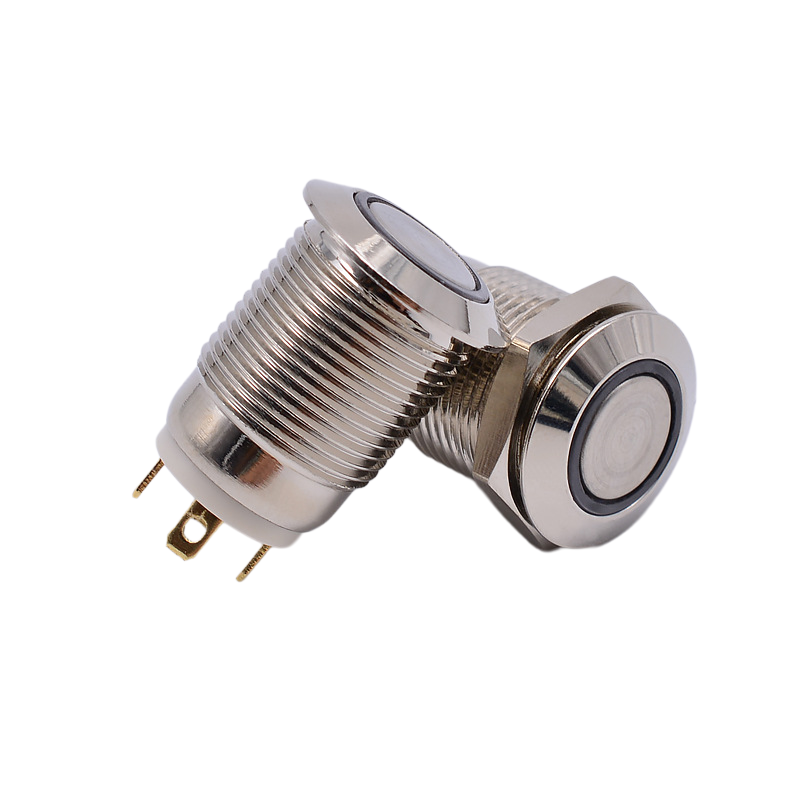

12mm momentary push button switch
Features:
Made of brass nickel plated material, strong and durable. High-grade appearance and nice touch feeling. Adopt rubber ring and hexagonal nut fixed, anti dust and waterproof, which make it great for outdoors use. Copper plating silver terminals for good conductive properties. Momentary type, push it-on, release it-off. Metal button head durable for longstanding press.
Specification:
Product name: Push Button Switch/ Anti-vandal switch
Material: Brass nickel plated / Stainless steel
LED color: not aviliable
Operation Type: Momentary type push it-on, release it-off Switch
Rating: 5A/250VAC LED
voltage: 12V or 3V, 5V, 24V, 110V, 220V
Contact Configuration: 1NO
Head shape: Flat head Hole size: 12mm
| Product Name | Push button switch |
| Model | YL12C-B11PE |
| Mounting Hole | 12mm |
| Operation Type | momentary |
| Switch Combination | 1NO1NC |
| Head Type | flat head |
| Terminal type | Screw Terminal |
| Enclosure Material | Brass nickel |
| Delivery Days | 3-7 days after payment received |
| Contact Resistance | 50 mΩ max |
| Insulation Resistance | 1000MΩ Min |
| Dielectric Intensity | 2000VAC |
| Operating Temperature | -20°C ~+55°C |
| Wire Connector / Wire soldering | Acceptable and with fast shipping |
| Accessories | Nut, Rubber ,Waterproof O-ring |

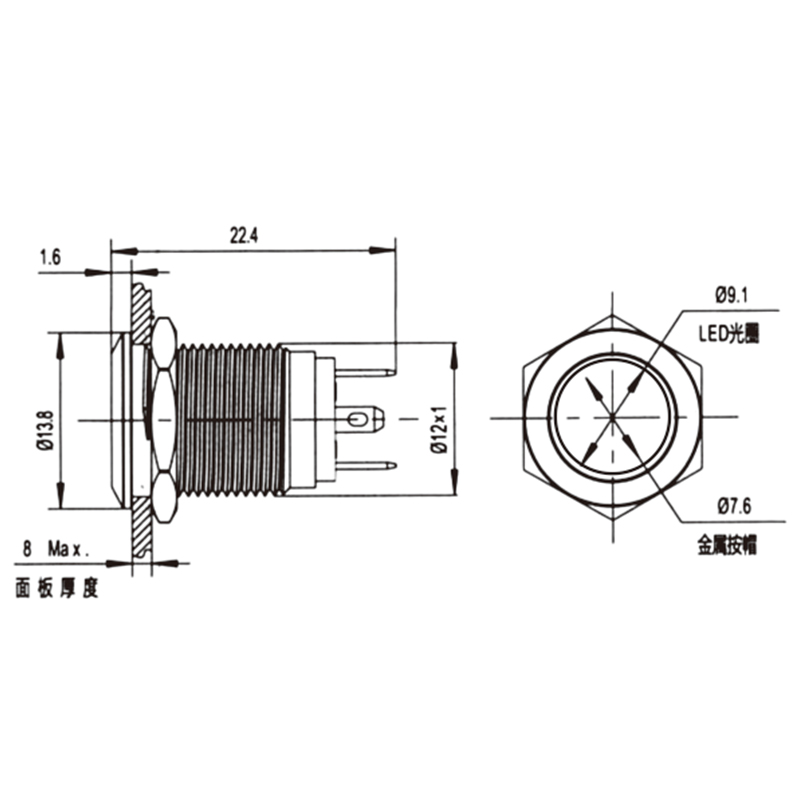

Drawing
Product introduction : The metal push button switch is a rugged and reliable switch designed for industrial applications. It is constructed with a durable metal casing and features instantaneous action to provide tactile feedback to the user. These switches are available in a variety of sizes and configurations to meet different installation requirements.
Application one: Industrial Machinery: Metal push button switches are commonly used in industrial machinery control panels for functions such as start/stop, emergency shutdown, and process control.
