6A/250VAC, 10A/125VAC ON OFF Anti Vandal Swtich YL12C-A11Q

Short Description:

Product name: Push Button Switch/ Anti-vandal switch

Material: Brass nickel plated / Stainless steel

LED color: Blue White Yellow Red Green Orange

e Operation Type: Momentary type push it-on, release it-off Switch

Rating: 5A/250VAC LED

voltage: 12V or 3V, 5V, 24V, 110V, 220V

Contact Configuration: 1NO1NC

Head shape: Dome head  Hole size: 12mm

Product Detail

Product Tags


Made of brass nickel plated material, strong and durable. High-grade appearance and nice touch feeling. Adopt rubber ring and hexagonal nut fixed, anti dust and waterproof, which make it great for outdoors use. Copper plating silver terminals for good conductive properties. Momentary type, push it-on, release it-off. Metal button head durable for longstanding press.


Product Name Push button switch
Model YL12C-A11Q
Mounting Hole 12mm
Operation Type momentary
Switch Combination 1NO1NC
Head Type Dome head
Terminal type Terminal
Enclosure Material Brass nickel
Delivery Days 3-7 days after payment received
Contact Resistance 50 mΩ max
Insulation Resistance 1000MΩ Min
Dielectric Intensity 2000VAC
Operating Temperature -20°C ~+55°C
Wire Connector / Wire soldering Acceptable and with fast shipping
Accessories Nut, Rubber ,Waterproof O-ring


YL12C-A10Q1 (2)
6A250VAC, 10A125VAC ON OFF Anti Vandal Swtich (1)

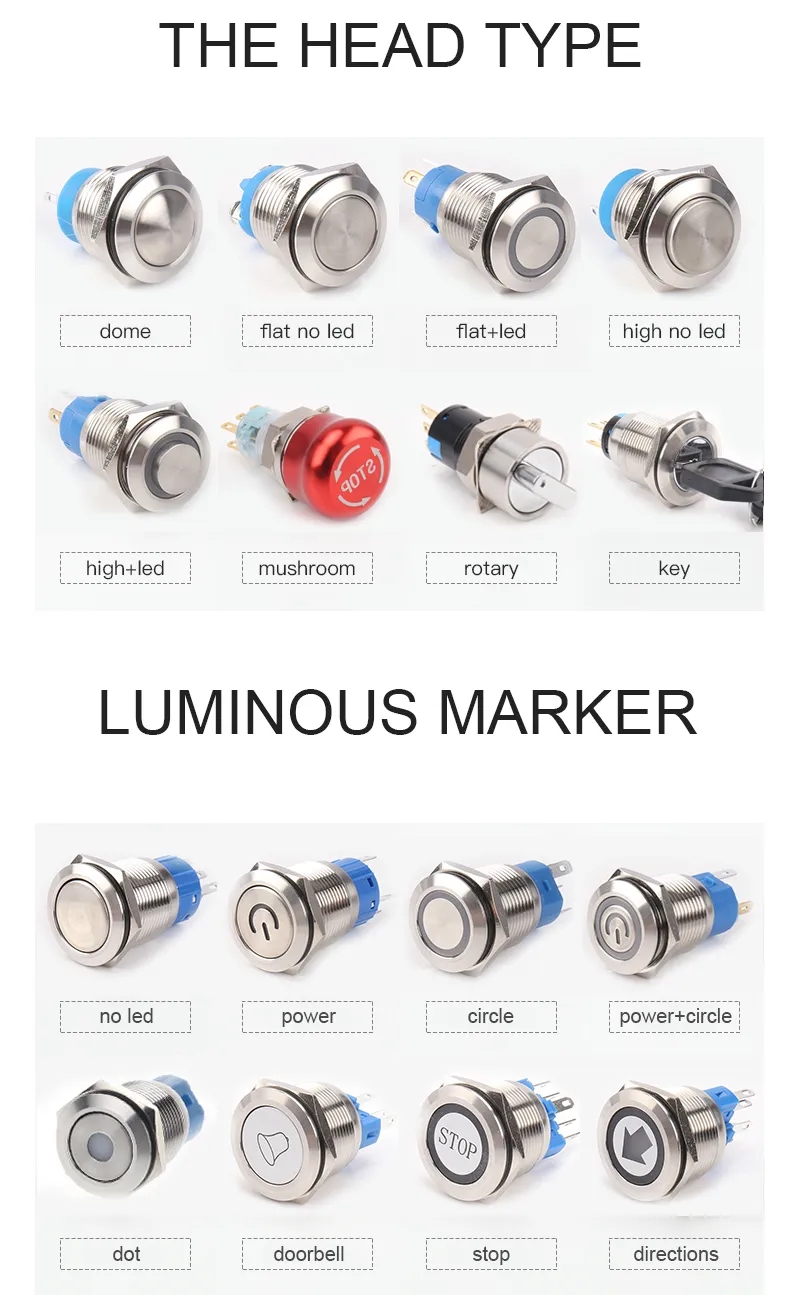

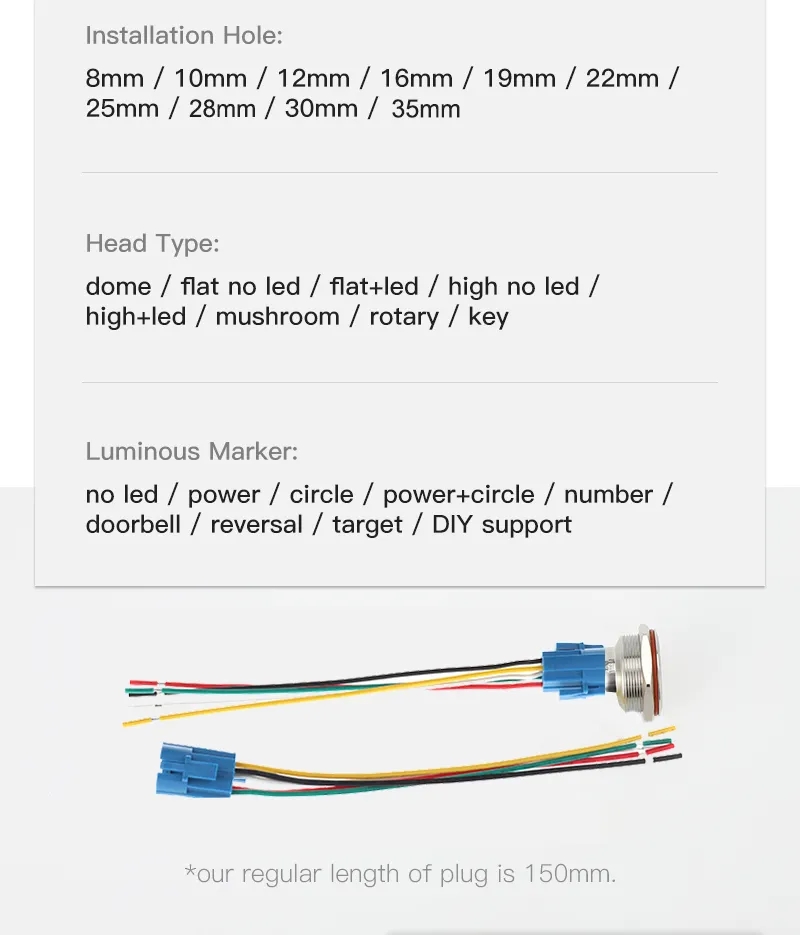

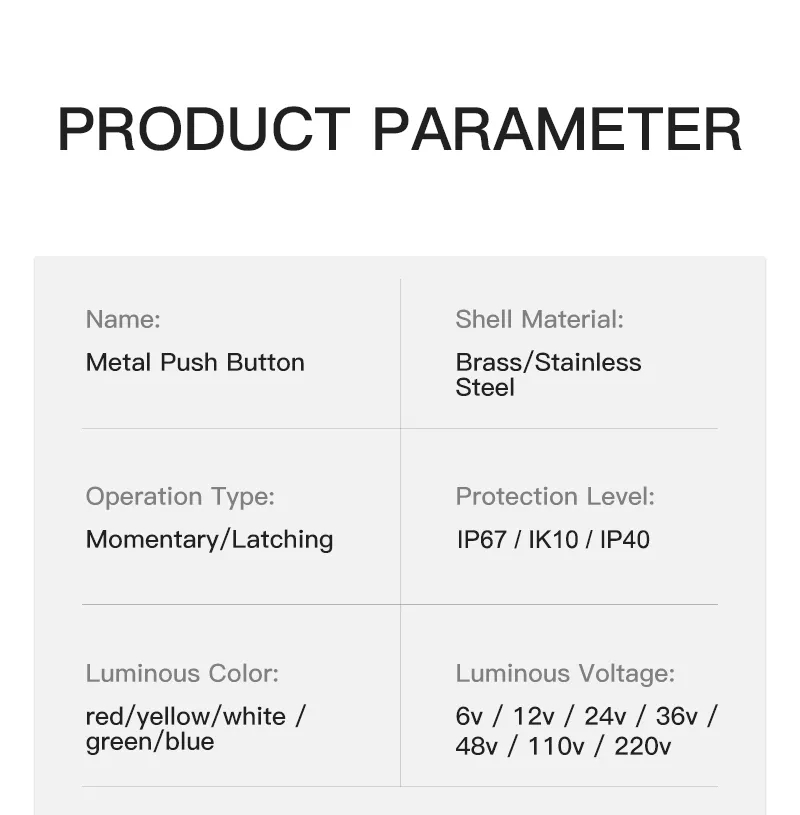

12 Parts (1) 12 Parts (2) 12 Parts (3)

product description

introducing our Anti-Vandal Switch – a perfect blend of style and durability. Crafted with precision, this switch is designed to resist tampering and ensure long-lasting performance. Whether you need it for outdoor equipment or secure access control, our Anti-Vandal Switch is the ideal choice.

This switch features a robust stainless steel construction with a vandal-proof design. Its momentary action ensures quick and reliable response. With a sleek, low-profile design and a choice of LED illumination options, it not only offers functionality but also adds a touch of sophistication to your equipment.

Trust our Anti-Vandal Switch to protect your investment and maintain the security of your devices. Get the reliability and style you deserve today

application: Secure Access Control Systems

Our Anti-Vandal Switches find a perfect home in secure access control systems. These robust switches offer the reliability and durability needed to control access to sensitive areas. Whether it's an office building, data center, or secure facility, our switches ensure only authorized personnel gain entry.
