automotive momentary switch

Short Description:

Made of brass nickel plated material, strong and durable. High-grade appearance and nice touch feeling. Adopt rubber ring and hexagonal nut fixed, anti dust and waterproof, which make it great for outdoors use. Copper plating silver terminals for good conductive properties. Momentary type, push it-on, release it-off. Metal button head durable for longstanding press.


Product Detail

Product Tags

Features:

Made of brass nickel plated material, strong and durable. High-grade appearance and nice touch feeling. Adopt rubber ring and hexagonal nut fixed, anti dust and waterproof, which make it great for outdoors use. Copper plating silver terminals for good conductive properties. Momentary type, push it-on, release it-off. Metal button head durable for longstanding press.



Specification:

Product name: Push Button Switch/ Anti-vandal switch

Material: Brass nickel plated / Stainless steel

LED color: Blue White Yellow Red Green Orange

e Operation Type: Latching type

Rating: 5A/250VAC LED

voltage: 12V or 3V, 5V, 24V, 110V, 220V

Contact Configuration: 1NO1NC

Head shape: Flat head  Hole size: 12mm

Product Name Push button switch
Model YL12C-C11PCZ
Mounting Hole 12mm
Operation Type Latching
Switch Combination 1NO1NC
Head Type Flat head
Terminal type PINS  Terminal
Enclosure Material Brass nickel
Delivery Days 3-7 days after payment received
Contact Resistance 50 mΩ max
Insulation Resistance 1000MΩ Min
Dielectric Intensity 2000VAC
Operating Temperature -20°C ~+55°C
Wire Connector / Wire soldering Acceptable and with fast shipping
Accessories Nut, Rubber ,Waterproof O-ring

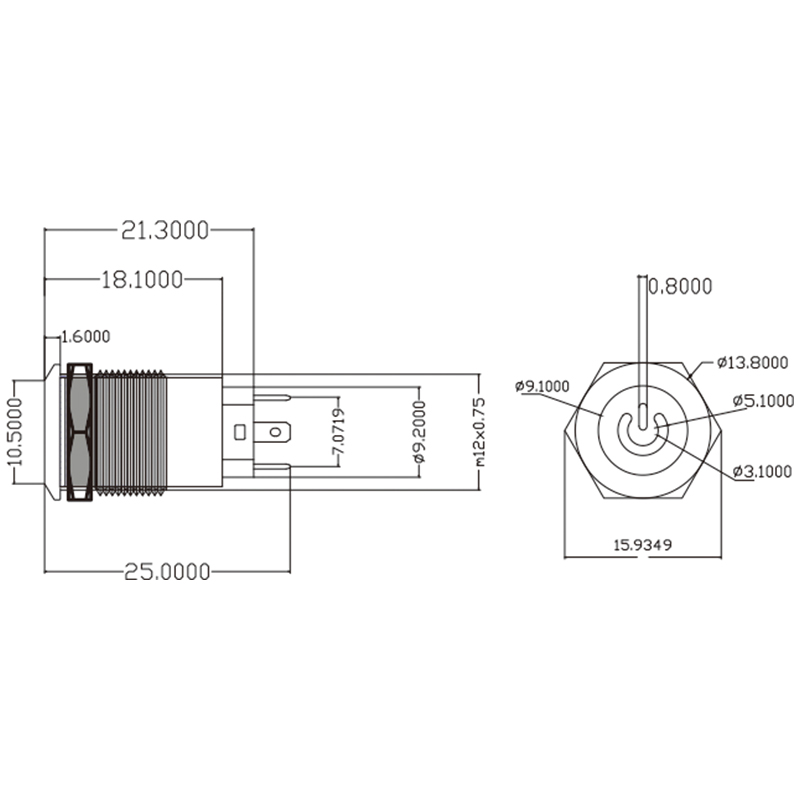

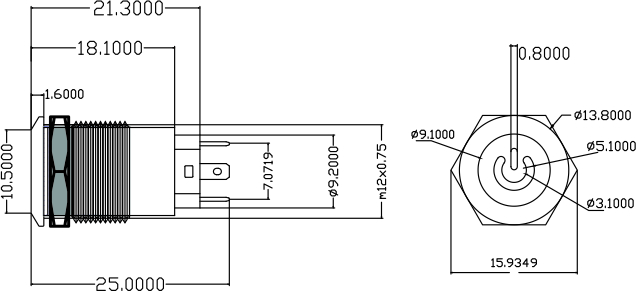

Drawing

YL12C-C11PCZ

YL12C-C11PCZ

YL12C-C11PCZ

YL12C-C11PCZ YL12C-C11PCZ

1.1

1.2

1.3

Product introduction : Our metal push button switches feature a sleek, modern design that’s perfect for consumer electronics and appliances. Illuminated options provide visual feedback and enhance the user interface.

Application : Consumer Electronics: These switches are commonly used in devices such as audio amplifiers, home appliances, and gaming peripherals for power on/off and mode selection.
