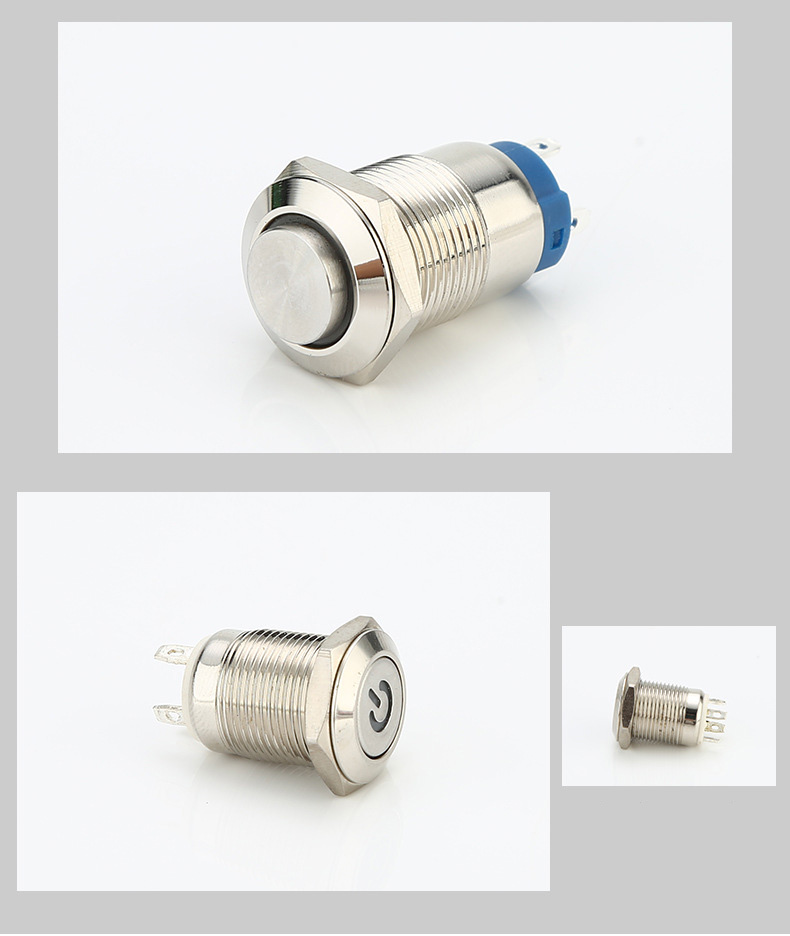

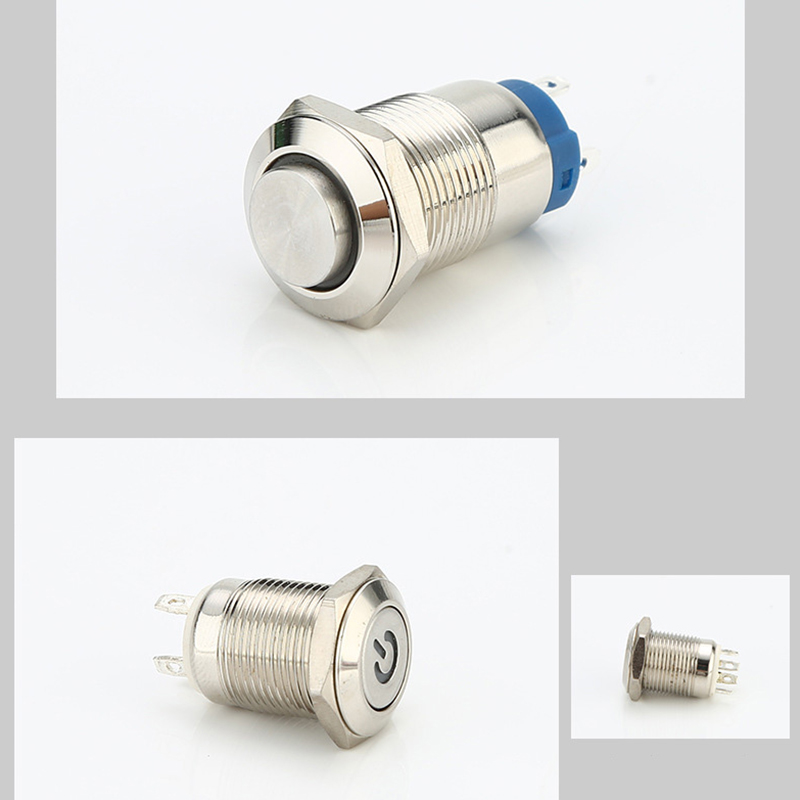

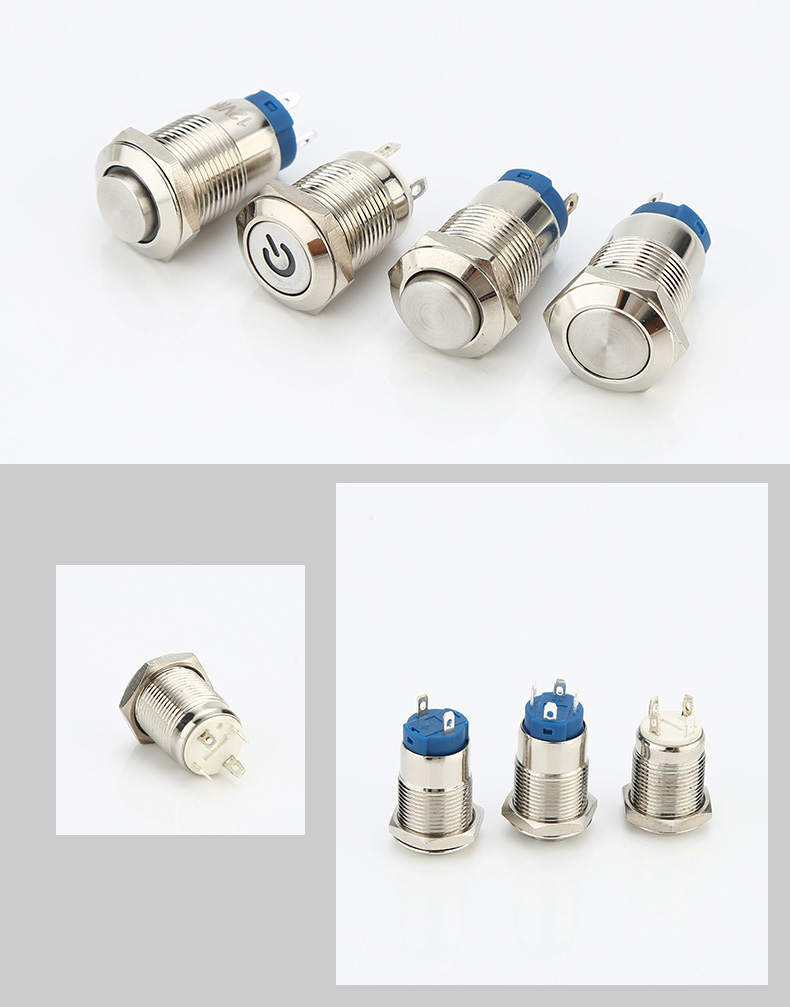

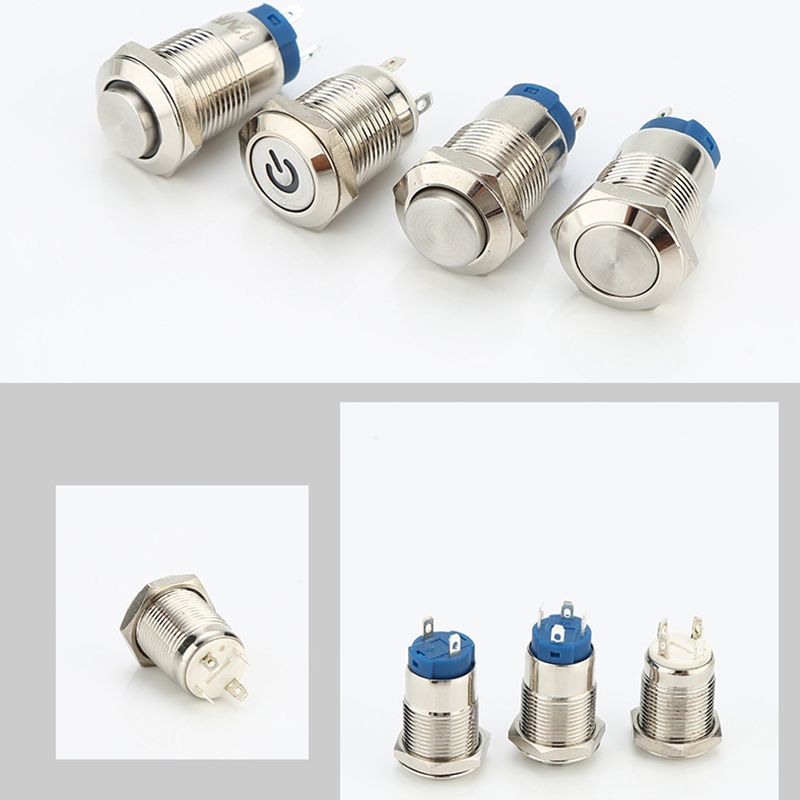

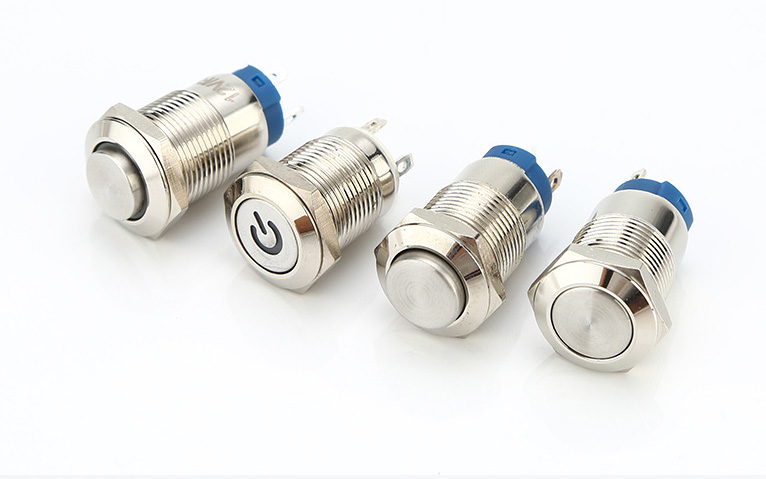

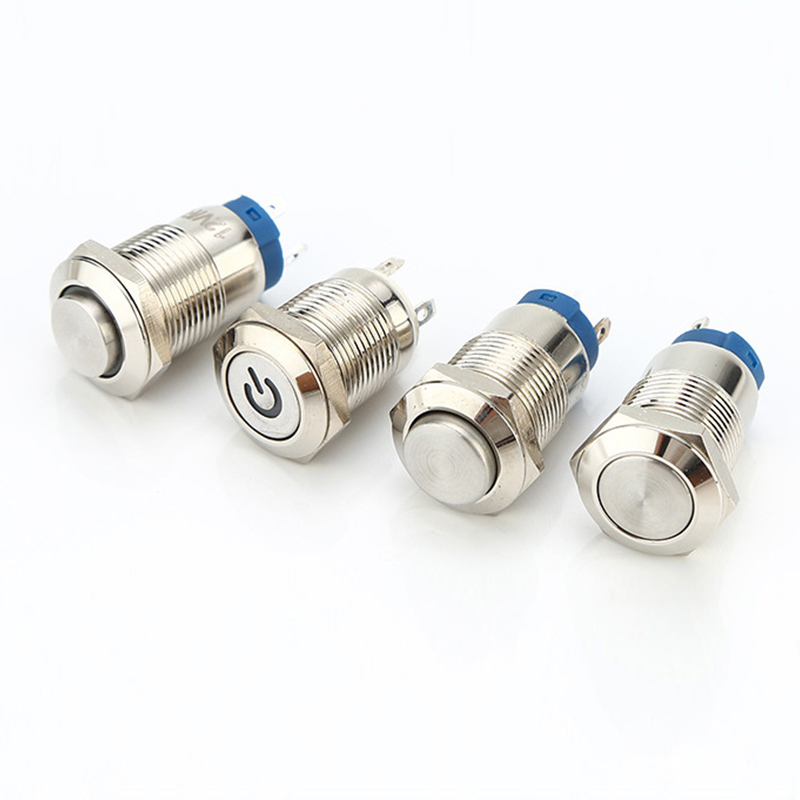

12mm momentary push button switch
Features:
Made of brass nickel plated material, strong and durable. High-grade appearance and nice touch feeling. Adopt rubber ring and hexagonal nut fixed, anti dust and waterproof, which make it great for outdoors use. Copper plating silver terminals for good conductive properties. Momentary type, push it-on, release it-off. Metal button head durable for longstanding press.
Specification:
Product name: Push Button Switch/ Anti-vandal switch
Material: Brass nickel plated / Stainless steel
LED color: not aviliable
Operation Type: Latching type
Rating: 5A/250VAC LED
voltage: 12V or 3V, 5V, 24V, 110V, 220V
Contact Configuration: 1NO
Head shape: High head Hole size: 12mm
| Product Name | Push button switch |
| Model | YL12C-C11GZ |
| Mounting Hole | 12mm |
| Operation Type | Latching |
| Switch Combination | 1NO1NC |
| Head Type | HIGH head |
| Terminal type | Pins Terminal |
| Enclosure Material | Brass nickel |
| Delivery Days | 3-7 days after payment received |
| Contact Resistance | 50 mΩ max |
| Insulation Resistance | 1000MΩ Min |
| Dielectric Intensity | 2000VAC |
| Operating Temperature | -20°C ~+55°C |
| Wire Connector / Wire soldering | Acceptable and with fast shipping |
| Accessories | Nut, Rubber ,Waterproof O-ring |

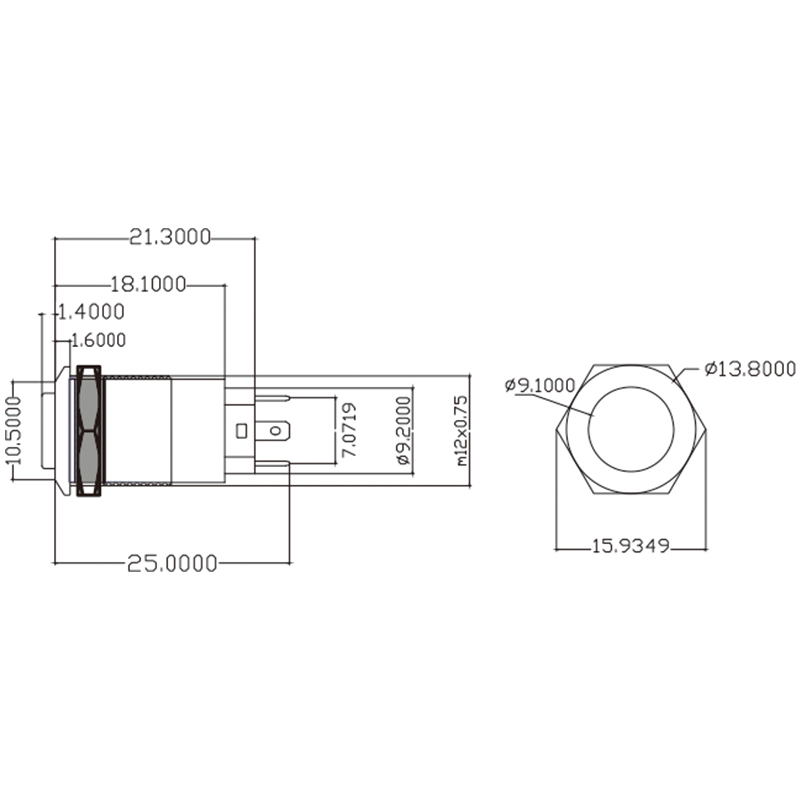

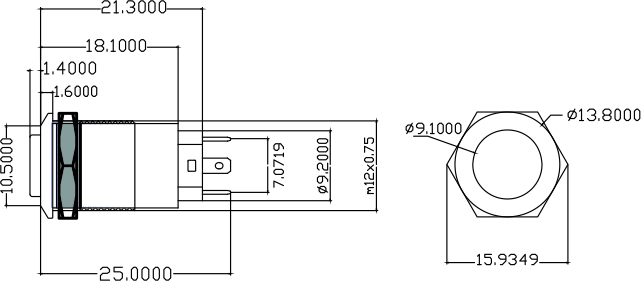

Drawing
Product introduction : Our metal push button switches feature LED backlighting, providing excellent visibility in low light environments. They are suitable for emergency response and safety equipment.
Application : Emergency Equipment: These switches are integrated into fire alarm systems, medical equipment, and emergency response control panels for quick and easy activation during emergencies.
