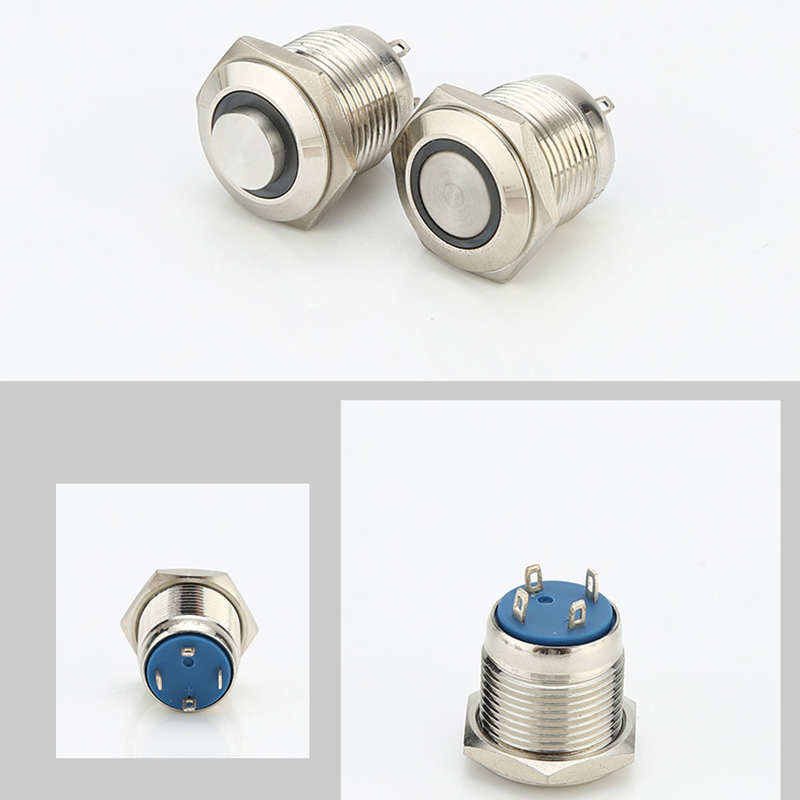

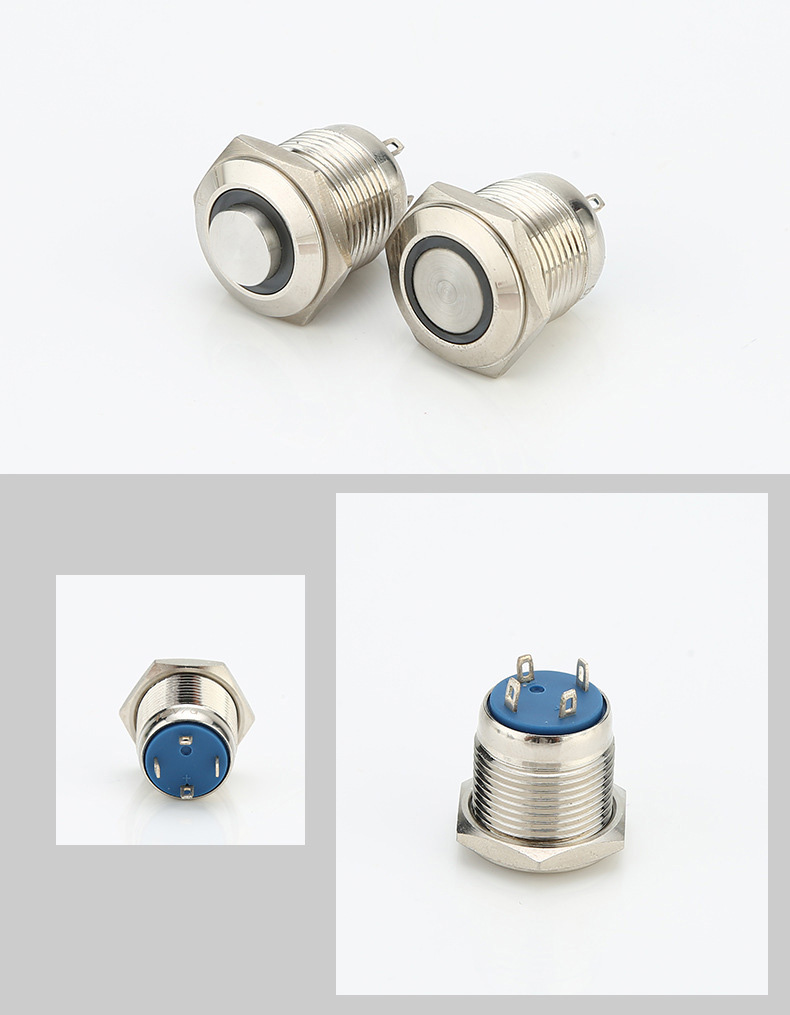

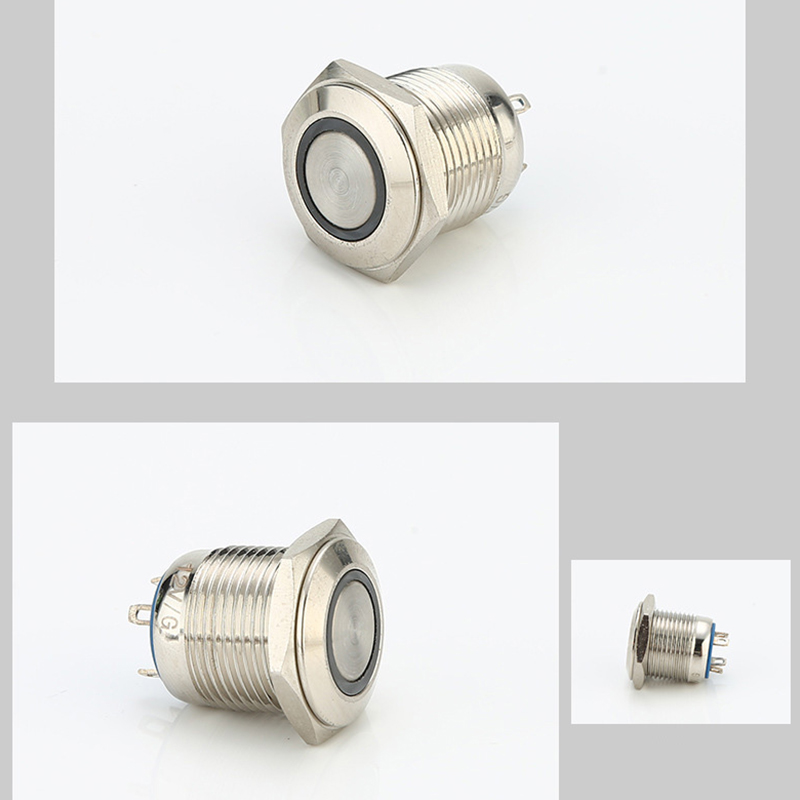

waterproof momentary switch

Short Description:

Made of brass nickel plated material, strong and durable. High-grade appearance and nice touch feeling. Adopt rubber ring and hexagonal nut fixed, anti dust and waterproof, which make it great for outdoors use. Copper plating silver terminals for good conductive properties. Momentary type, push it-on, release it-off. Metal button head durable for longstanding press.


Product Detail

Product Tags

Features:

Made of brass nickel plated material, strong and durable. High-grade appearance and nice touch feeling. Adopt rubber ring and hexagonal nut fixed, anti dust and waterproof, which make it great for outdoors use. Copper plating silver terminals for good conductive properties. Momentary type, push it-on, release it-off. Metal button head durable for longstanding press.



Specification:

Product name: Push Button Switch/ Anti-vandal switch

Material: Brass nickel plated / Stainless steel

LED color: yes

Operation Type:Momentary  type

Rating: 5A/250VAC

voltage: 12V or 3V, 5V, 24V, 110V, 220V

Contact Configuration: 1NO

Head shape: Flat head  Hole size: 16mm

Product Name Push button switch
Model YL16C-B11PZ
Mounting Hole 16mm
Operation Type  Momentary
Switch Combination 1NO
Head Type Flat head
Terminal type Pins Terminal
Enclosure Material Brass nickel
Delivery Days 3-7 days after payment received
Contact Resistance 50 mΩ max
Insulation Resistance 1000MΩ Min
Dielectric Intensity 2000VAC
Operating Temperature -20°C ~+55°C
Wire Connector / Wire soldering Acceptable and with fast shipping
Accessories Nut, Rubber ,Waterproof O-ring

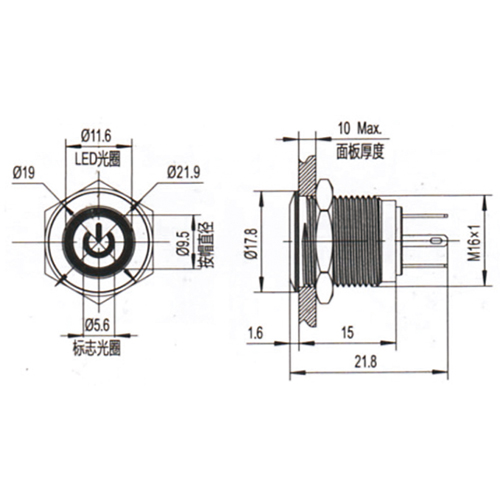

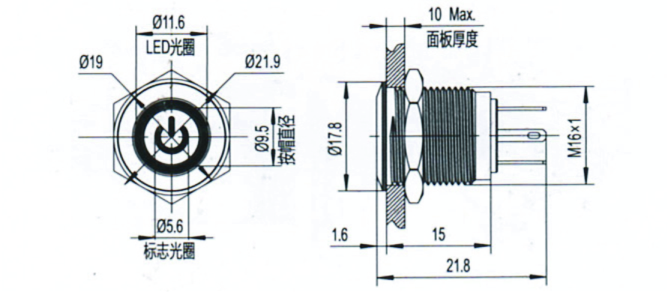

Drawing

YL16C-C11PC1

YL16C-C11PC YL16C-C11PC YL16C-C11PC

3.1 3.2 3.3

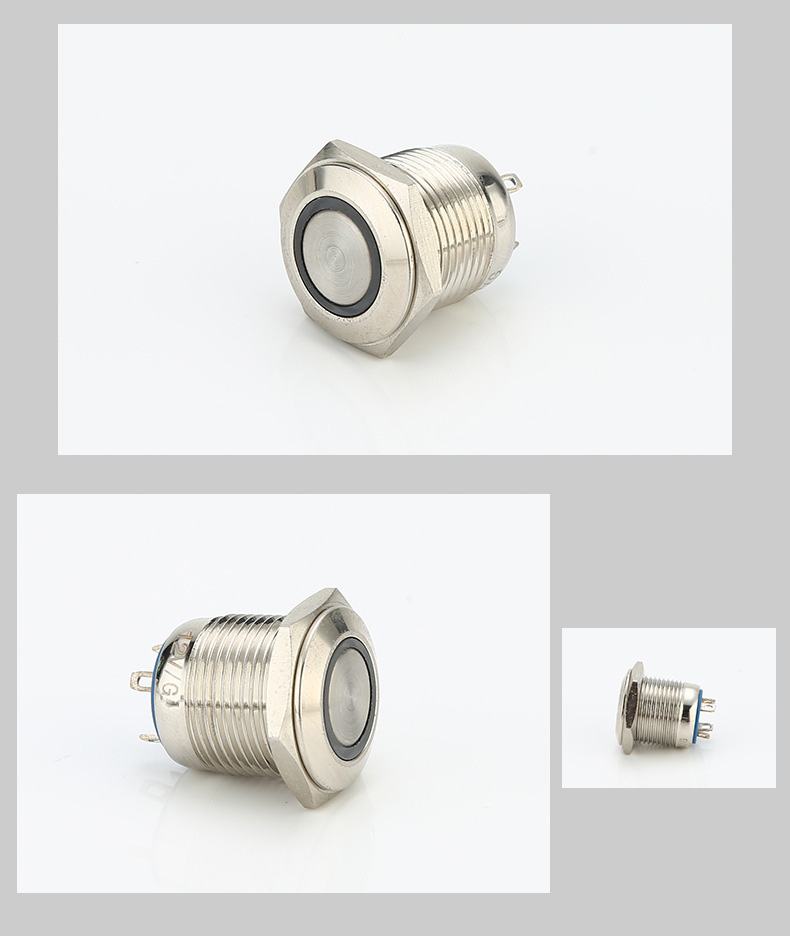

Product introduction :

Our metal push button switches feature an illuminated ring for increased visibility, making them ideal for low light environments and nighttime operation. It is commonly used in emergency response and safety equipment for fast and reliable activation.

Application : Emergency Response Equipment: These switches are used in fire alarm systems, medical equipment, and emergency response control panels for easy and immediate activation during an emergency.
