car push button switch
Features:
Made of brass nickel plated material, strong and durable. High-grade appearance and nice touch feeling. Adopt rubber ring and hexagonal nut fixed, anti dust and waterproof, which make it great for outdoors use. Copper plating silver terminals for good conductive properties. Momentary type, push it-on, release it-off. Metal button head durable for longstanding press.
Specification:
Product name: Push Button Switch/ Anti-vandal switch
Material: Brass nickel plated / Stainless steel
LED color: yes
Operation Type:Momentary latching type
Rating: 5A/250VAC
voltage: 12V or 3V, 5V, 24V, 110V, 220V
Contact Configuration: 1NO
Head shape: Flat head Hole size: 16mm
| Product Name | Push button switch |
| Model | YL16C-F11J |
| Mounting Hole | 16mm |
| Operation Type | Momentary Latching |
| Switch Combination | 1NO |
| Head Type | Flat head |
| Terminal type | Pins Terminal |
| Enclosure Material | Brass nickel |
| Delivery Days | 3-7 days after payment received |
| Contact Resistance | 50 mΩ max |
| Insulation Resistance | 1000MΩ Min |
| Dielectric Intensity | 2000VAC |
| Operating Temperature | -20°C ~+55°C |
| Wire Connector / Wire soldering | Acceptable and with fast shipping |
| Accessories | Nut, Rubber ,Waterproof O-ring |

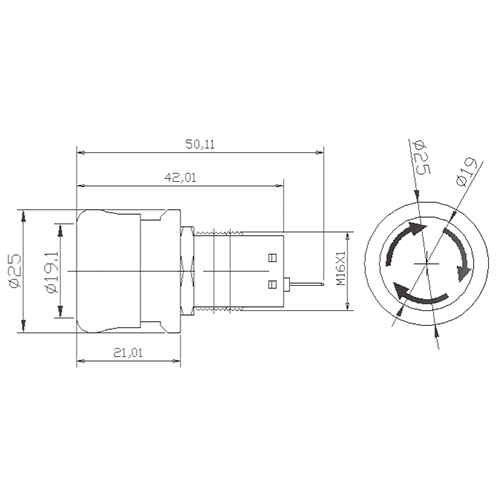

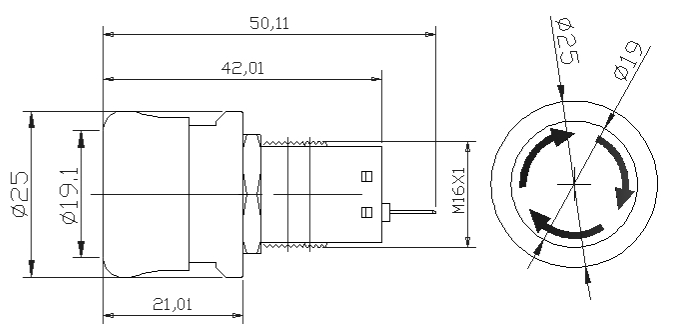

Drawing
Product introduction :
Our metal push button switches feature an illuminated ring for increased visibility, making them ideal for low light environments and nighttime operation. It is commonly used in emergency response and safety equipment for fast and reliable activation.
Application : Emergency Response Equipment: These switches are used in fire alarm systems, medical equipment, and emergency response control panels for easy and immediate activation during an emergency.
