Features:

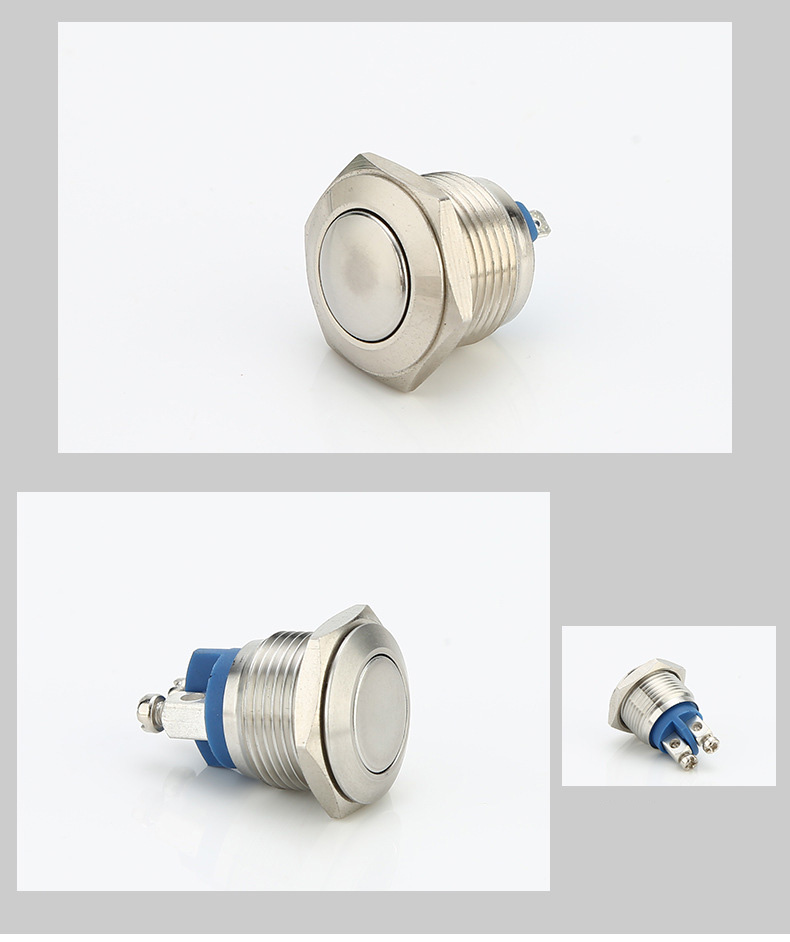

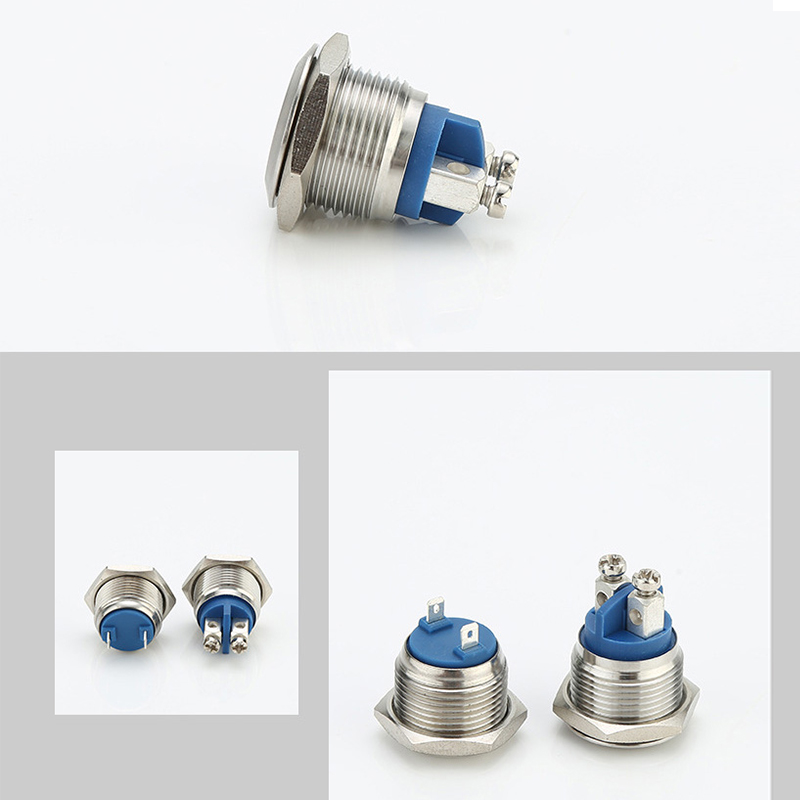

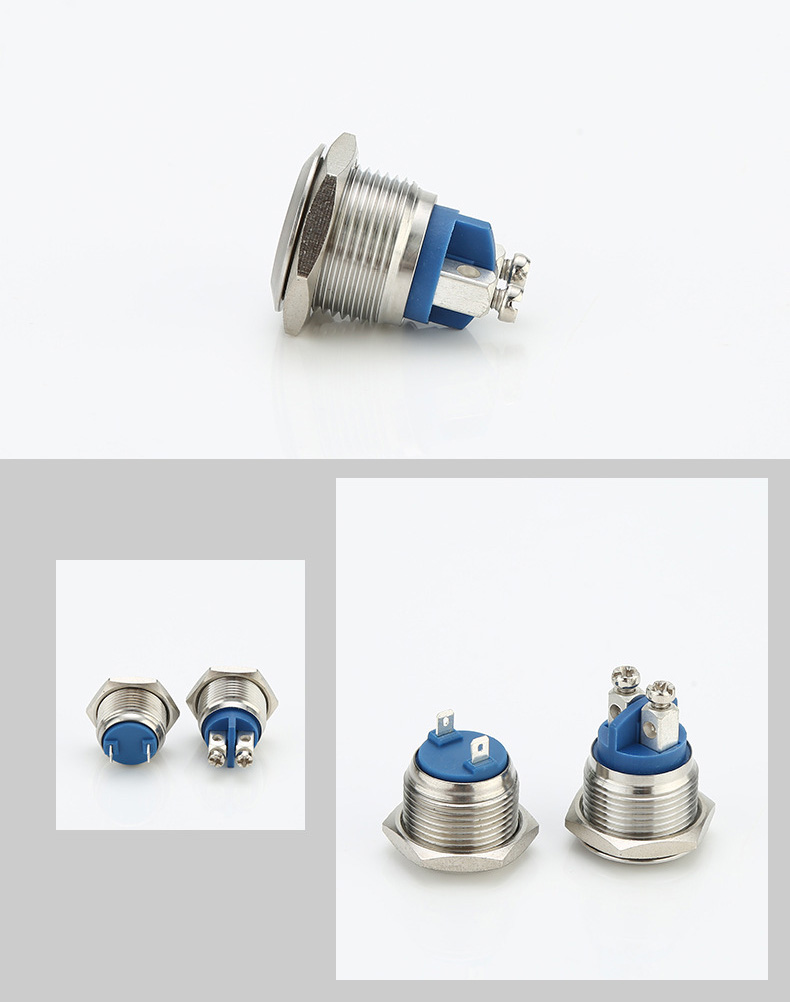

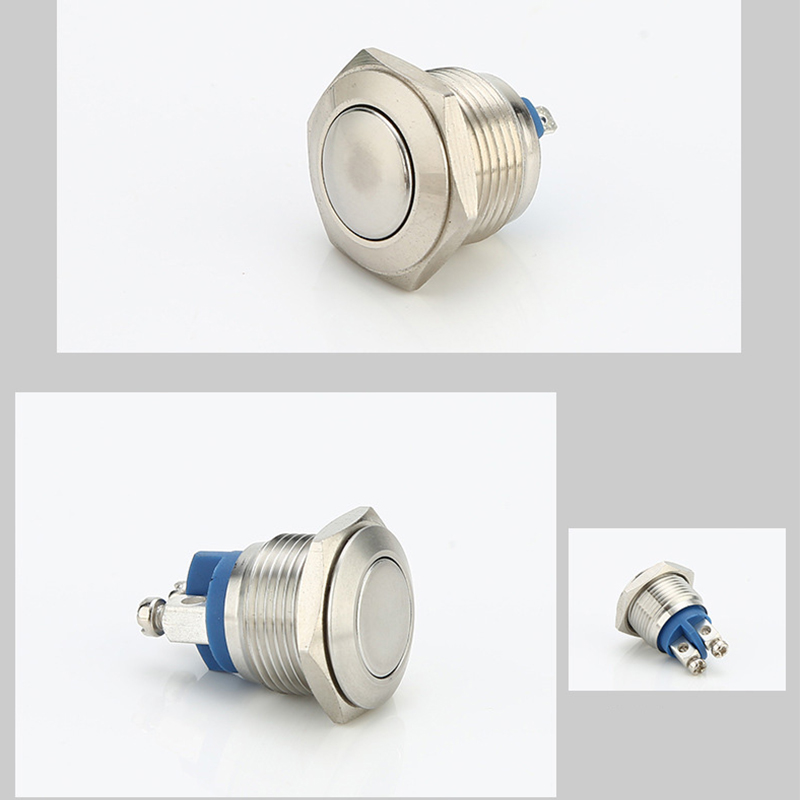

Made of brass nickel plated material, strong and durable. High-grade appearance and nice touch feeling. Adopt rubber ring and hexagonal nut fixed, anti dust and waterproof, which make it great for outdoors use. Copper plating silver terminals for good conductive properties. Momentary type, push it-on, release it-off. Metal button head durable for longstanding press.
Specification:
Product name: Push Button Switch/ Anti-vandal switch
Material: Brass nickel plated / Stainless steel
LED color: No
Operation Type: Latching type
Rating: 5A/250VAC
voltage: 12V or 3V, 5V, 24V, 110V, 220V
Contact Configuration: 1NO1NC
Head shape: Dome head Hole size: 16mm
| Product Name | Push button switch |
| Model | YL16C-A11Q |
| Mounting Hole | 16mm |
| Operation Type | Latching |
| Switch Combination | 1NO1NC |
| Head Type | Dome head |
| Terminal type | Pins Terminal |
| Enclosure Material | Brass nickel |
| Delivery Days | 3-7 days after payment received |
| Contact Resistance | 50 mΩ max |
| Insulation Resistance | 1000MΩ Min |
| Dielectric Intensity | 2000VAC |
| Operating Temperature | -20°C ~+55°C |
| Wire Connector / Wire soldering | Acceptable and with fast shipping |
| Accessories | Nut, Rubber ,Waterproof O-ring |

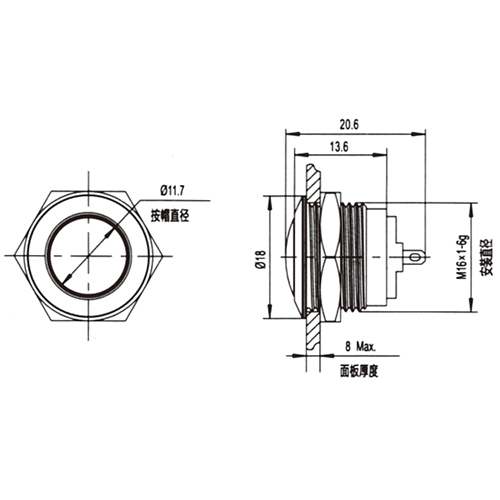

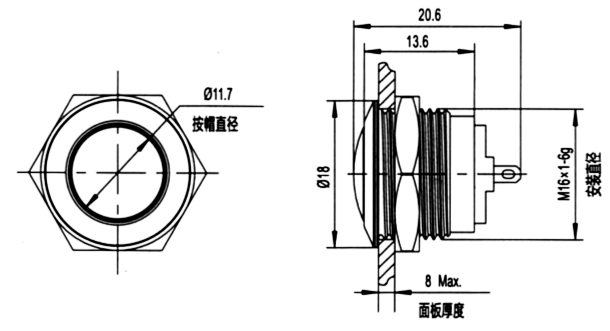

Drawing

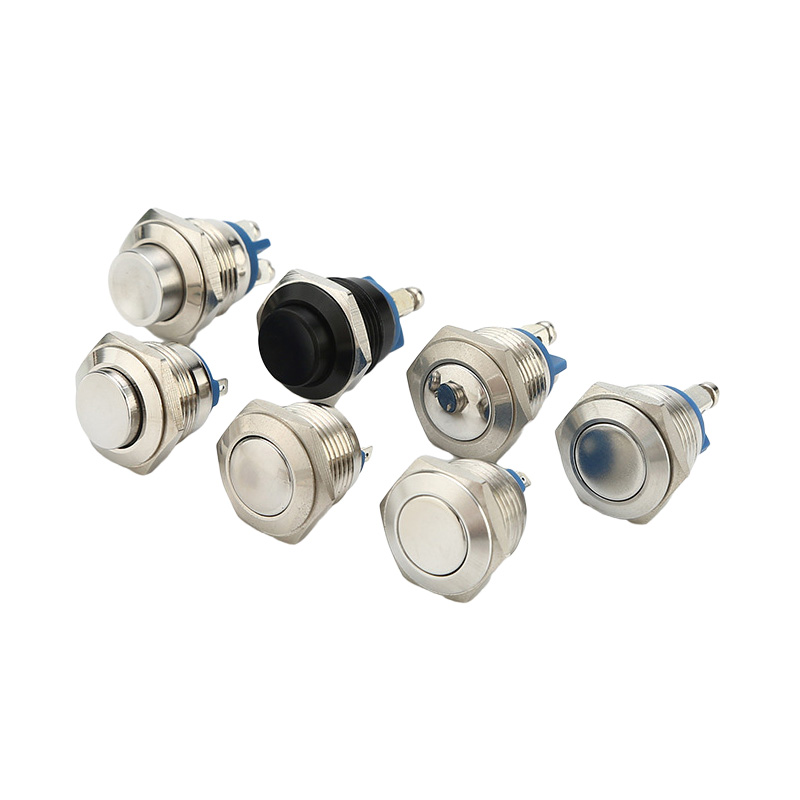

Product introduction : Our metal pushbutton switches feature customizable actuator shapes, legends and symbols, providing flexibility for design integration and user interface customization.
Application : Special Equipment: These switches are integrated into special equipment and instruments and require custom legends and symbols for clear and intuitive operation.
