metal push button switch momentary
Specification:
Product name: Illumination Push Button Switch/ Anti-vandal switch
Material: Brass nickel plated / Stainless steel
LED color: Blue White Yellow Red Green Orange
Operation Type: Momentary type
Rating: 5A/250VAC LED
voltage: 12V or 3V, 5V, 24V, 110V, 220V
Contact Configuration: 1NO1NC
Head shape: High head Hole size: 19mm
| Product Name | Push button switch |
| Model | YL19C-C11GE |
| Mounting Hole | 19mm |
| Operation Type | Momentary |
| Switch Combination | 1NO |
| Head Type | High head |
| Terminal type | Terminal |
| Enclosure Material | Brass nickel |
| Delivery Days | 3-7 days after payment received |
| Contact Resistance | 50 mΩ max |
| Insulation Resistance | 1000MΩ Min |
| Dielectric Intensity | 2000VAC |
| Operating Temperature | -20°C ~+55°C |
| Wire Connector / Wire soldering | Acceptable and with fast shipping |
| Accessories | Nut, Rubber ,Waterproof O-ring |

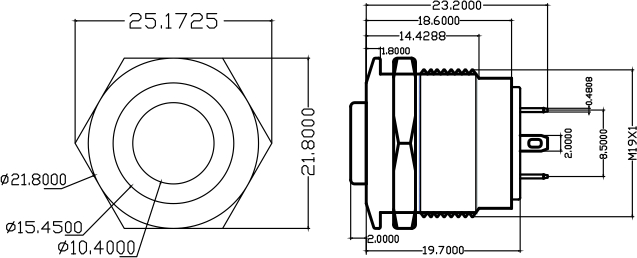

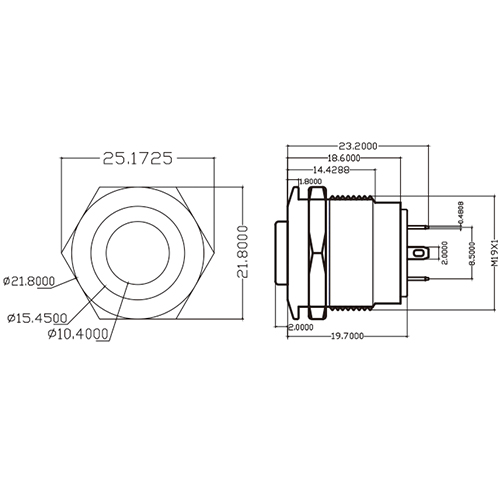

Drawing
Product introduction : Designed for rugged durability and long service life, this vandal-resistant switch provides resilient performance in harsh operating conditions. Its durable housing and tamper-resistant design make it ideal for applications that require enhanced security and protection from unauthorized access. The switch serves as a critical interface component that enhances control systems and maintains operational integrity in challenging industrial and commercial environments.
Application : Transportation Systems: Anti-vandal switches are integrated into transportation systems, including ticket machines, access doors, and onboard control panels of public transportation vehicles. Its anti-vandal properties and safe drive mechanism contribute to the reliable and safe operation of transportation infrastructure, ensuring passenger safety and operational continuity in transportation applications.
