20 amp push button switch for coffee machine

Short Description:

Product name:push button switch power switch

Material: Brass nickel plated / Stainless steel

LED color: Blue White Yellow Red Green Orange

Operation Type: Latching  type push it-on, push again  it-off Switch


Product Detail

Product Tags

Specification:

Product name:push button switch power switch

Material: Brass nickel plated / Stainless steel

LED color: Blue White Yellow Red Green Orange

Operation Type: Latching  type push it-on, push again  it-off Switch

Rating: 5A/250VAC LED

voltage: 12V or 3V, 5V, 24V, 110V, 220V

Contact Configuration: 1NO1NC

Head shape:  Flat  head  Hole size: 19mm

Product Name Push button switch
Model YL19C-C11PEZ
Mounting Hole 19mm
Operation Type latching
Switch Combination 1NO1NC
Head Type Flat head
Terminal type Pins
Enclosure Material Brass nickel
Delivery Days 3-7 days after payment received
Contact Resistance 50 mΩ max
Insulation Resistance 1000MΩ Min
Dielectric Intensity 2000VAC
Operating Temperature -20°C ~+55°C
Wire Connector / Wire soldering Acceptable and with fast shipping
Accessories Nut, Rubber ,Waterproof O-ring

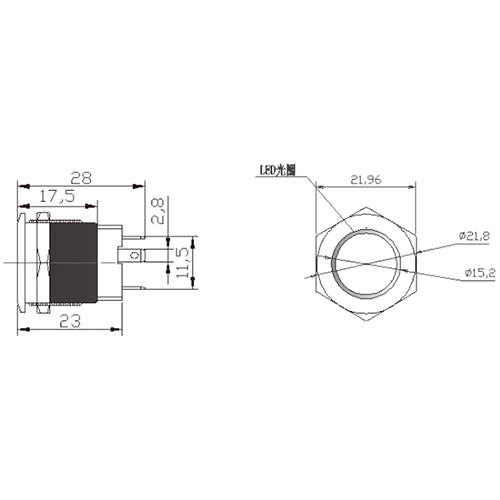

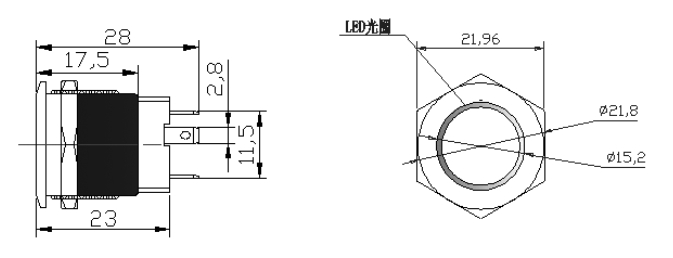

Drawing

YL19C-C11PEZ1

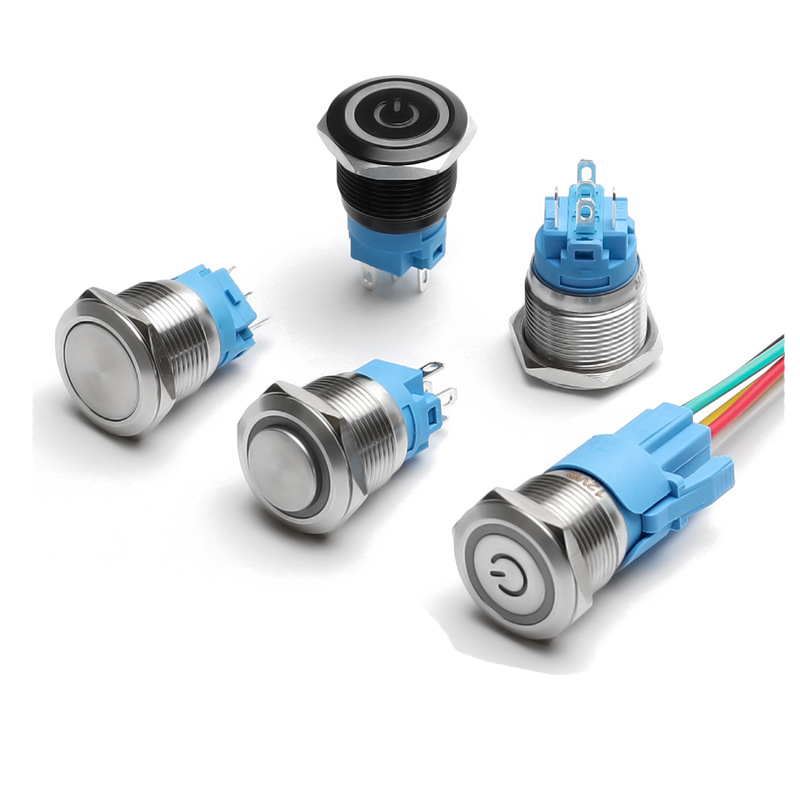

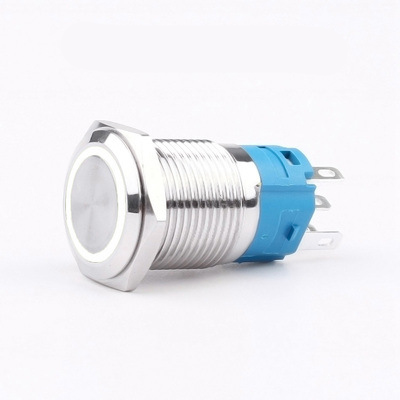

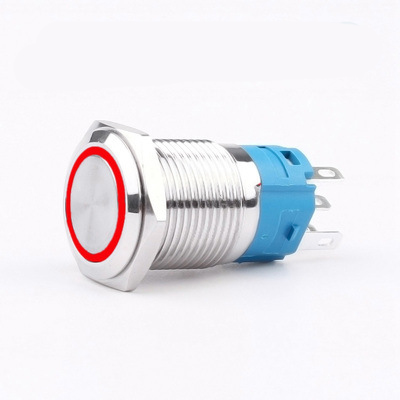

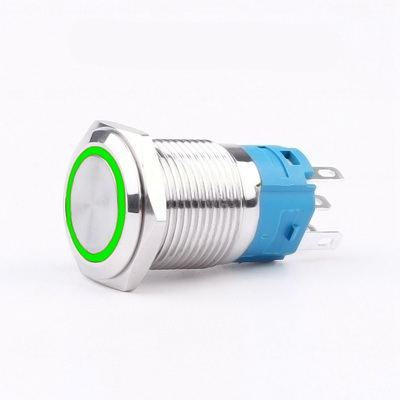

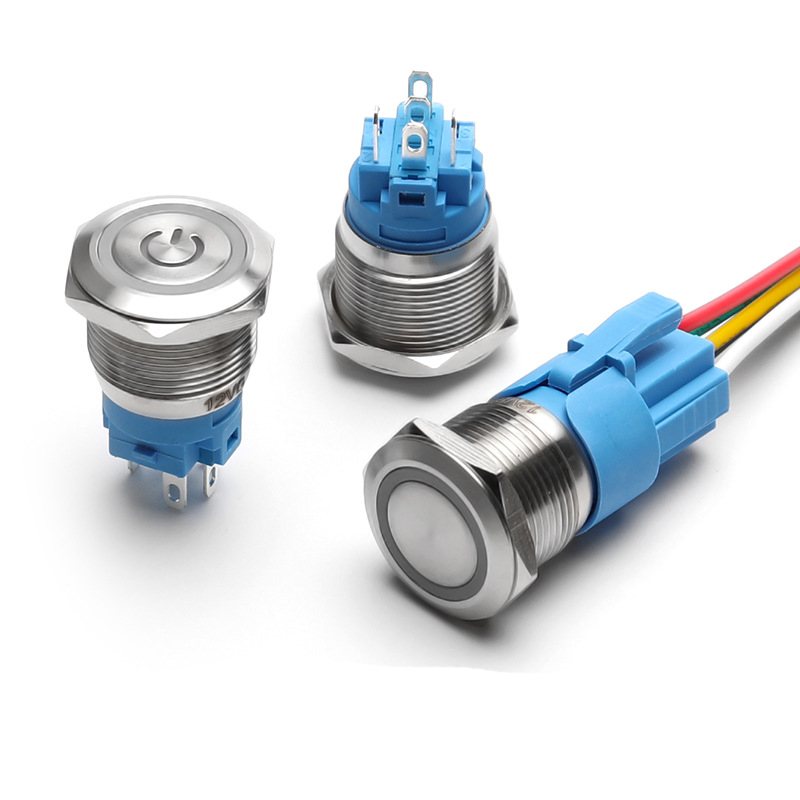

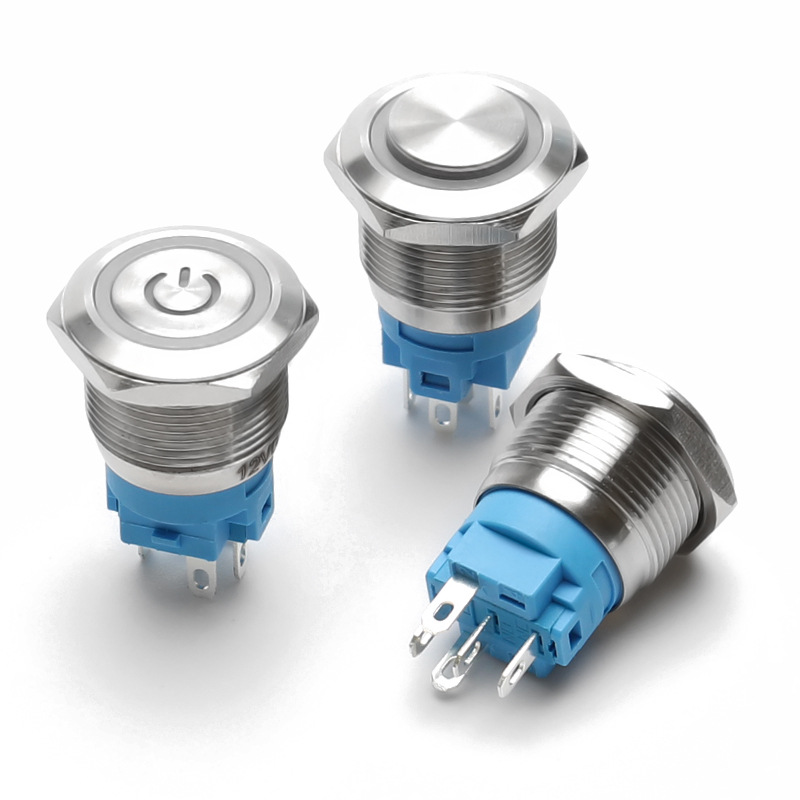

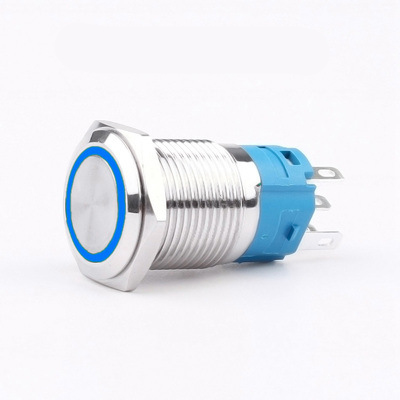

YL19C-C11PEZ YL19C-C11PEZ-1 YL19C-C11PEZ-2 YL19C-C11PEZ-3 YL19C-C11PEZ-4 YL19C-C11PEZ-5 YL19C-C11PEZ-6 YL19C-C11PEZ-7

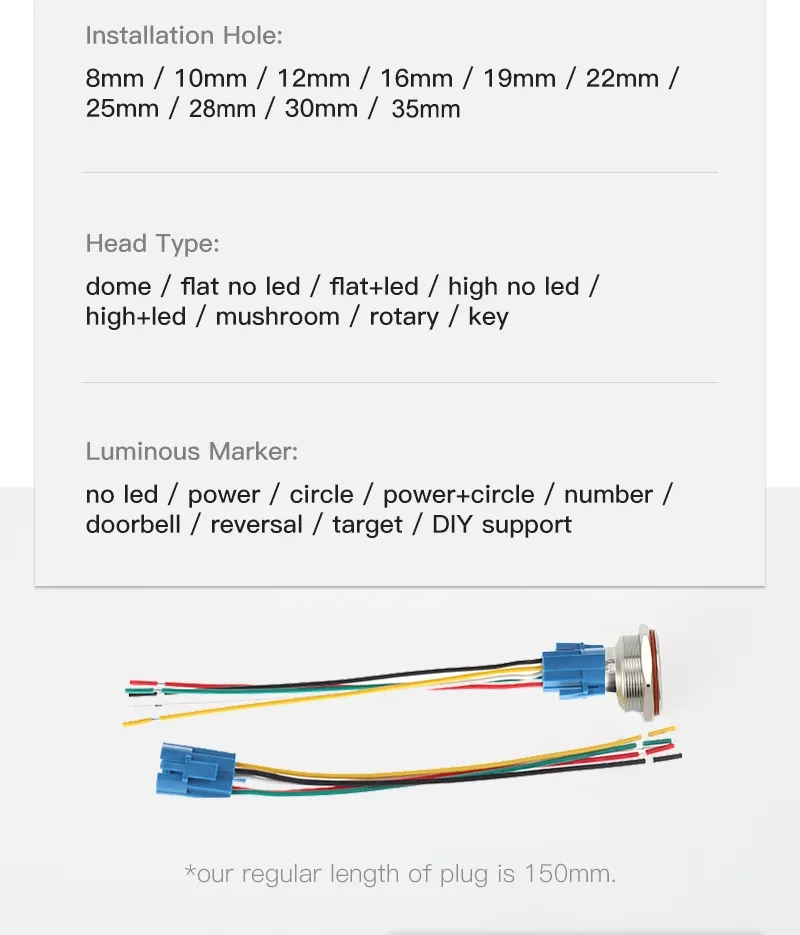

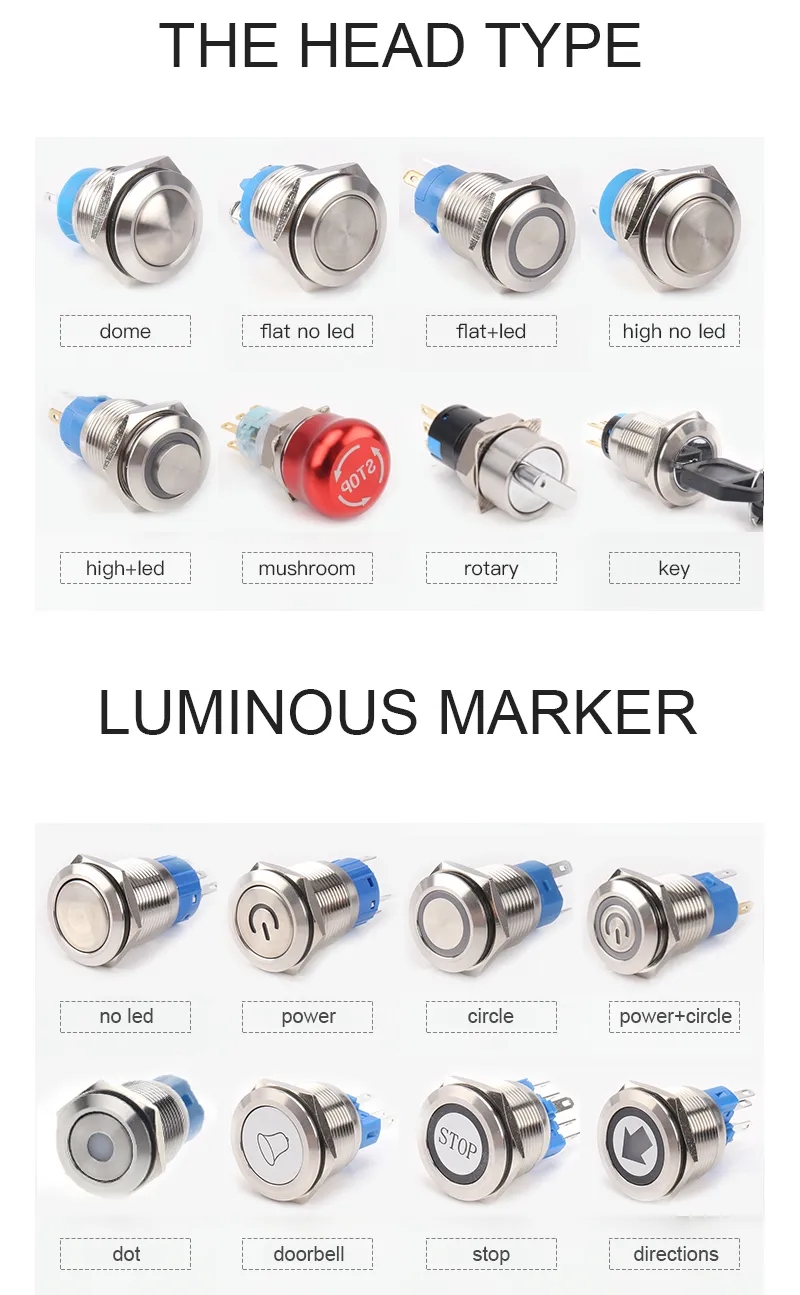

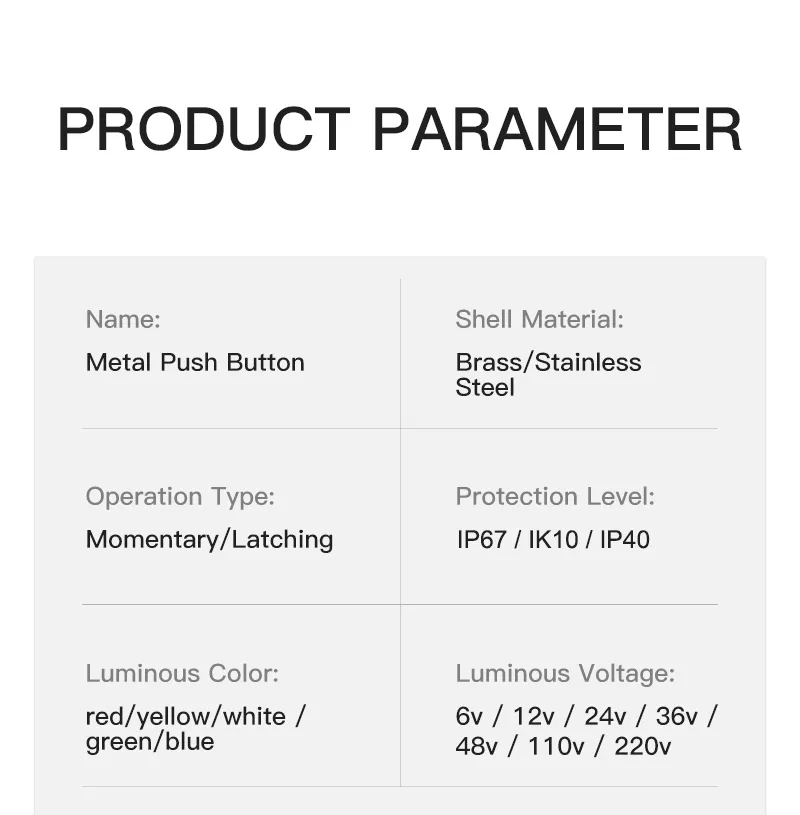

4.1 4.2 4.3

Product introduction : This tamper-resistant switch is designed to withstand harsh environments and potential tampering, providing a safe and durable control solution for a variety of industrial and commercial environments. Its rugged construction and tamper-resistant properties make it a reliable choice for applications that require strong performance and protection from unauthorized access. The switch serves as a critical interface component, ensuring operational resiliency and user confidence in demanding environments.

Application : Electrical Enclosures: Vandal-resistant switches are integrated into electrical enclosures, electrical panels, and outdoor control boxes. Its anti-vandal properties and safe drive mechanism help protect against environmental factors and unauthorized interference, ensuring reliable and safe operation of electrical equipment under various conditions.
