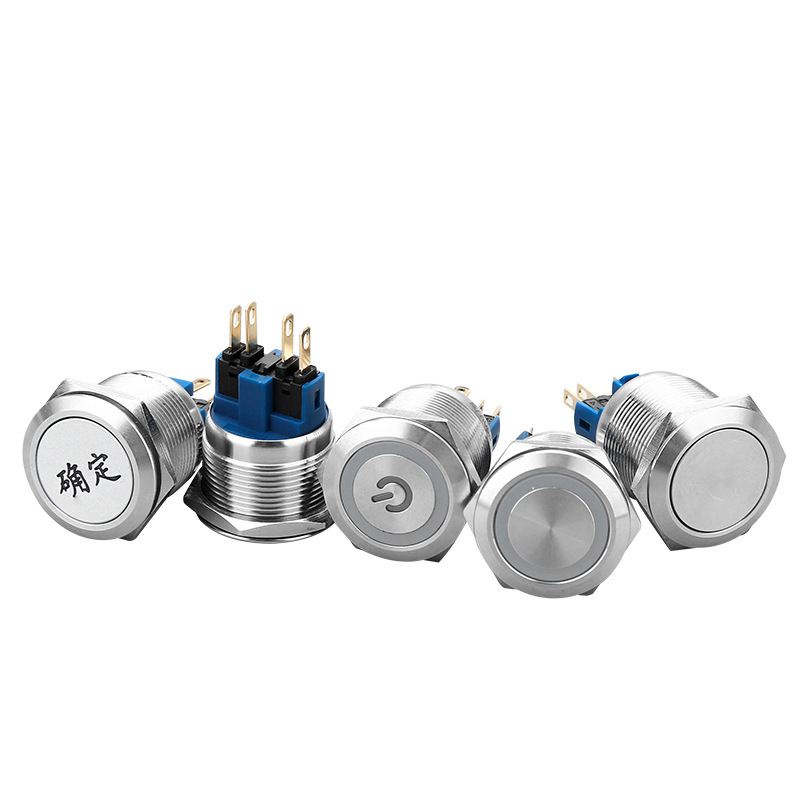

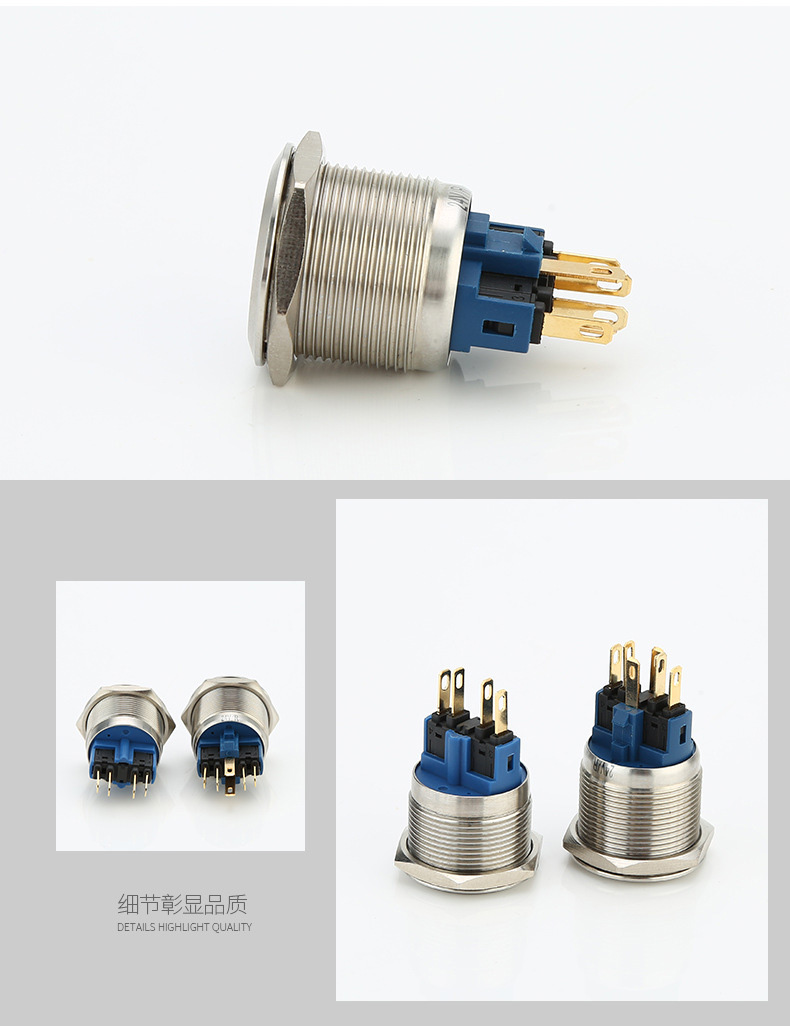

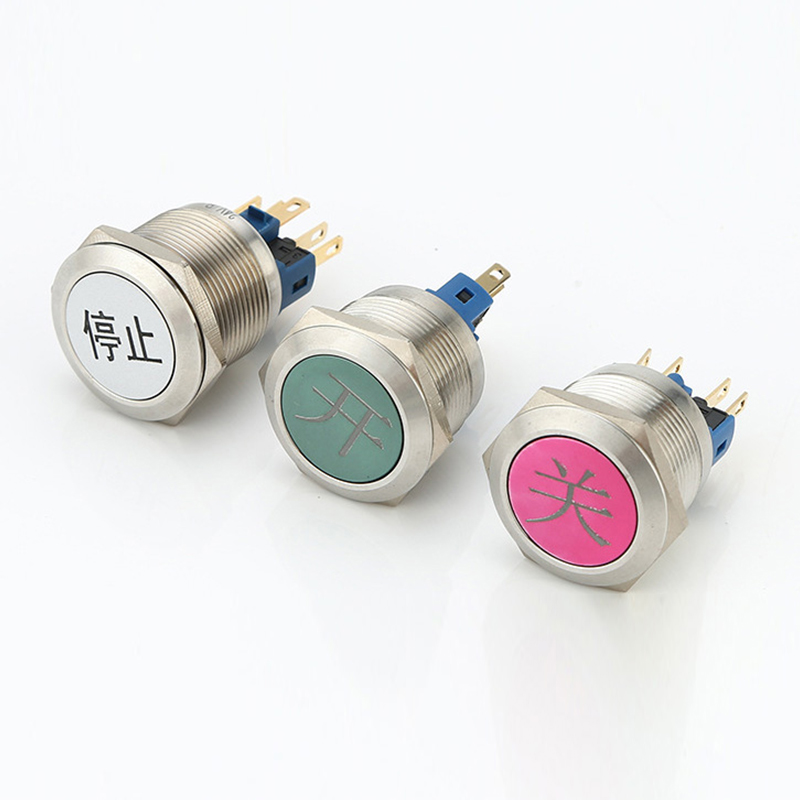

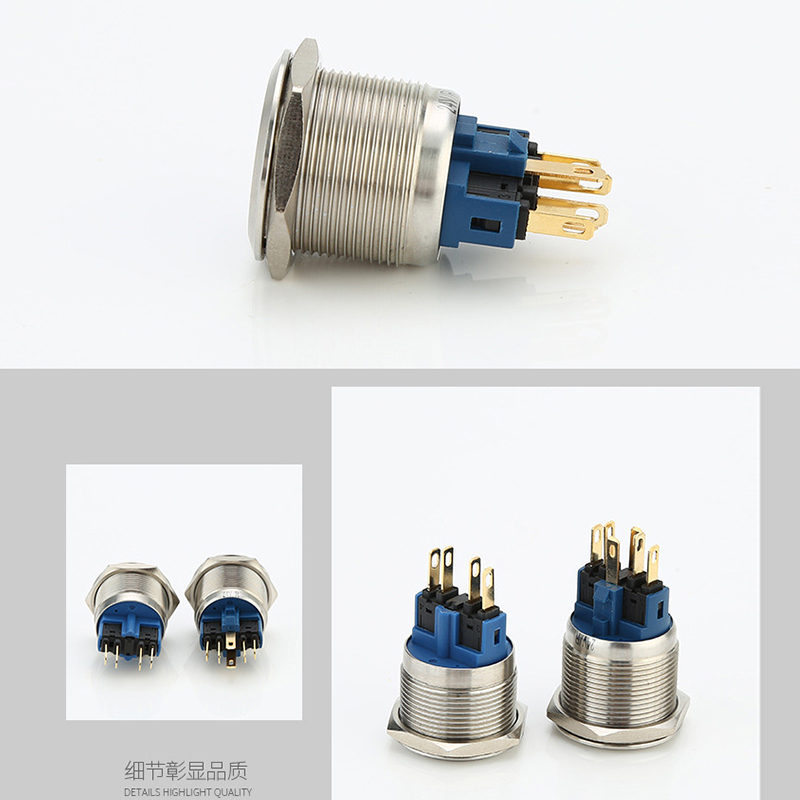

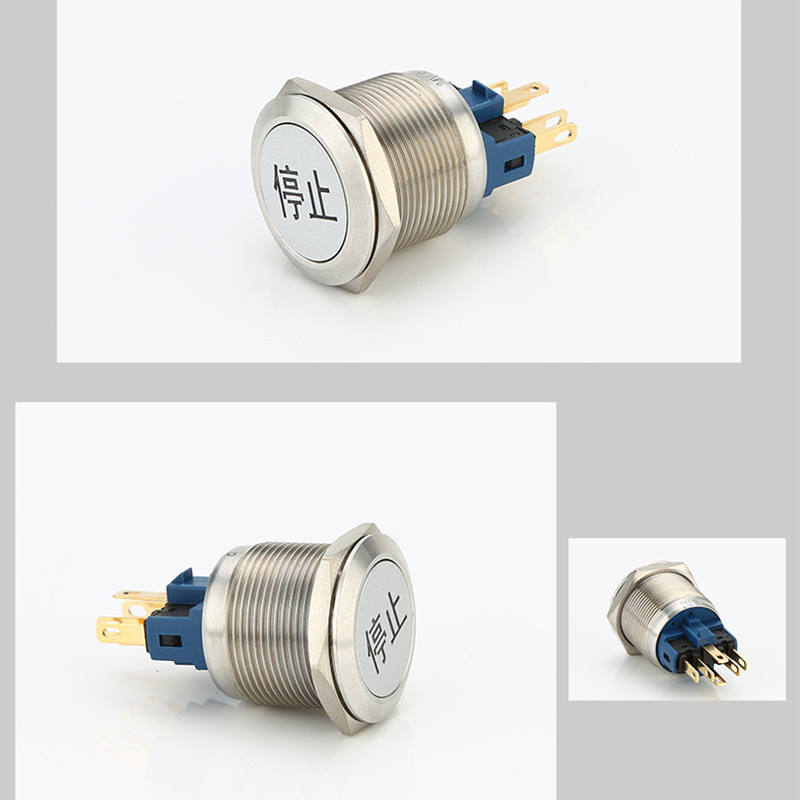

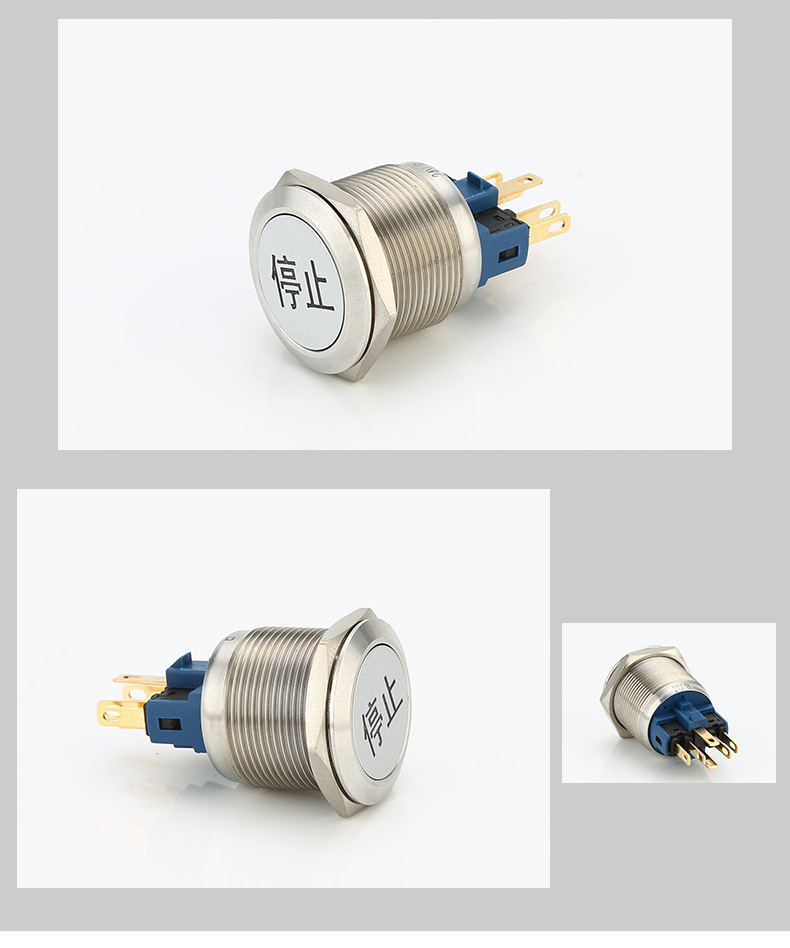

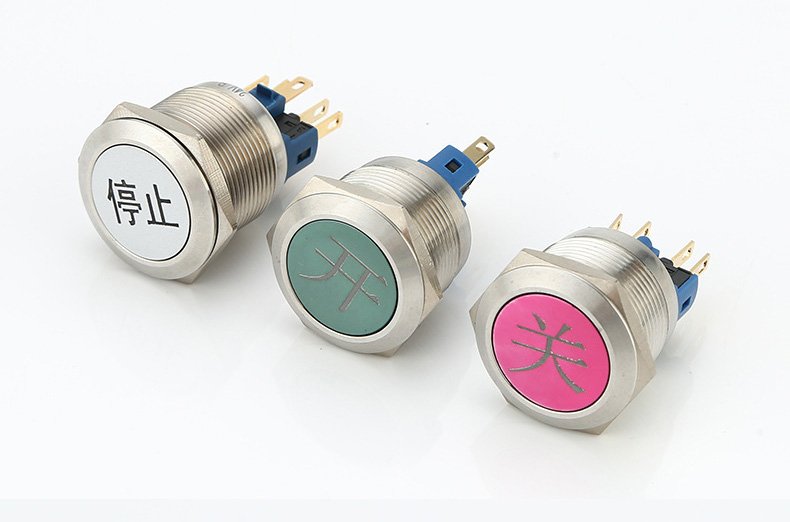

Metal button switch LED waterproof self-locking self-resetting power equipment start button
Specification:
Product name: 22mm latching Anti Vandal Swtich
Material: Brass nickel plated / Stainless steel
LED color: Blue White Yellow Red Green Orange
Operation Type: Latching type push it-on, push again it-off Switch
Rating: 5A/250VAC LED
voltage: 12V or 3V, 5V, 24V, 110V, 220V
Contact Configuration: 1NO1NC
Head shape: High head Hole size: 25mm
| Product Name | Push button switch |
| Model | YL25S-A11GZ |
| Mounting Hole | 25mm |
| Operation Type | latching |
| Switch Combination | 1NO1NC |
| Head Type | High head |
| Terminal type | Terminal |
| Enclosure Material | Brass nickel |
| Delivery Days | 3-7 days after payment received |
| Contact Resistance | 50 mΩ max |
| Insulation Resistance | 1000MΩ Min |
| Dielectric Intensity | 2000VAC |
| Operating Temperature | -20°C ~+55°C |
| Wire Connector / Wire soldering | Acceptable and with fast shipping |
| Accessories | Nut, Rubber ,Waterproof O-ring |

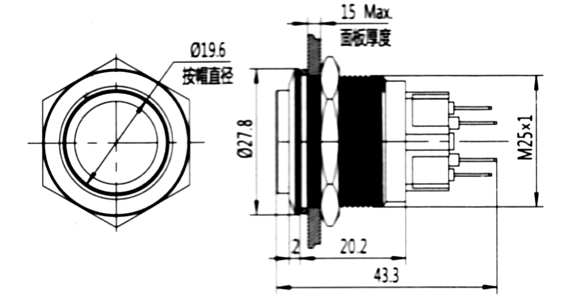

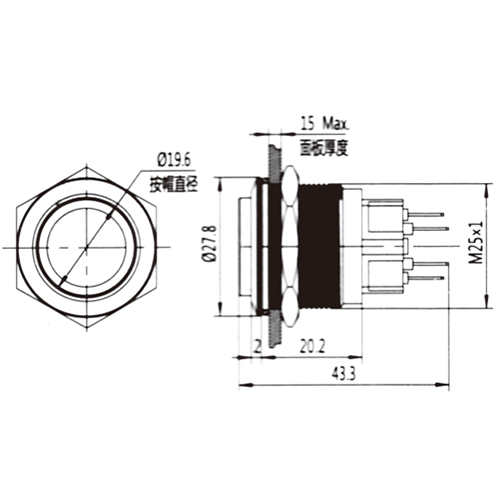

Drawing
Product features : Metal pushbutton switches are designed in a variety of available configurations, including momentary or latching operation, providing the versatility to meet specific operating requirements. Its configurable options can be customized to suit different control functions and user preferences, making it a versatile solution for a variety of applications.
Application : Electrical Control Panels: Metal push button switches are used within electrical control panels in industrial and commercial electrical systems. Its configurable nature allows customization of the control interface, allowing operators to initiate and manage circuits and components according to specific operational needs and safety protocols.
