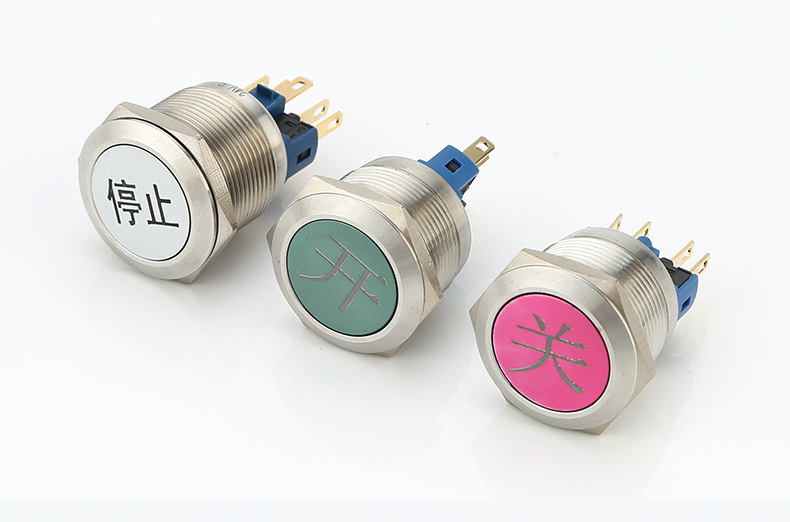

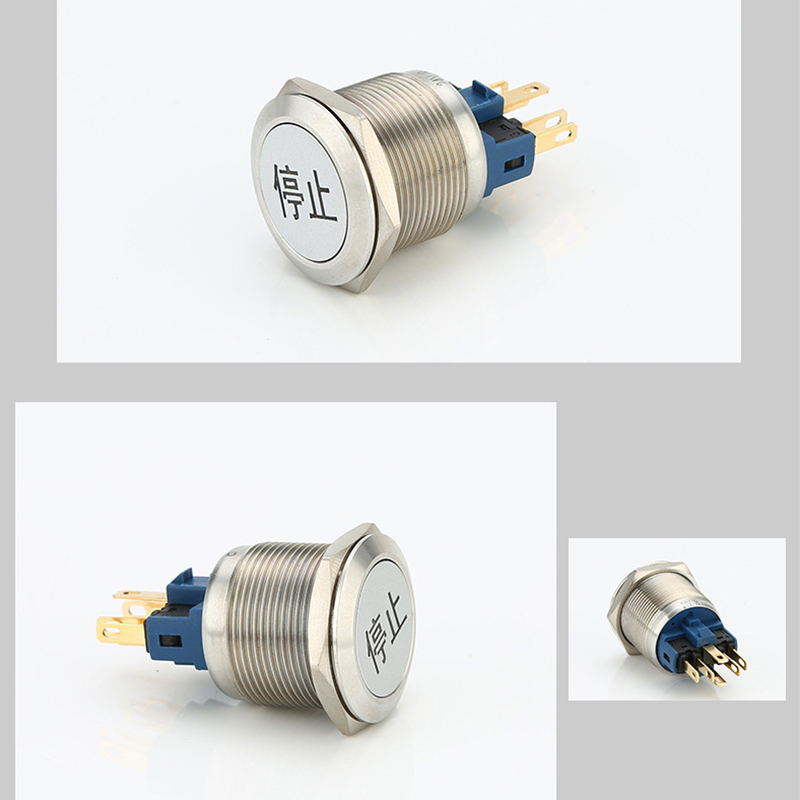

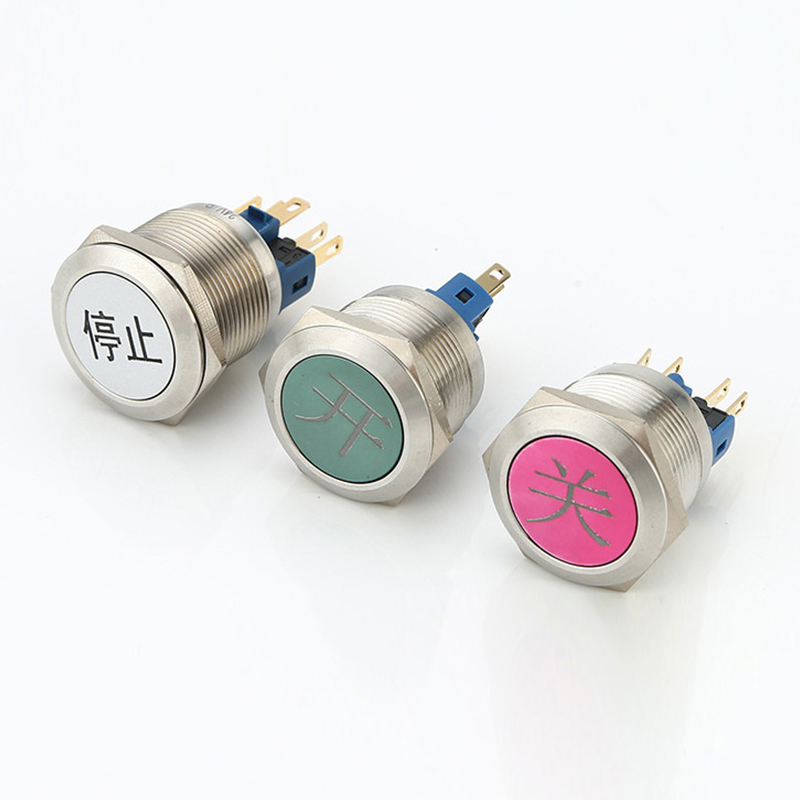

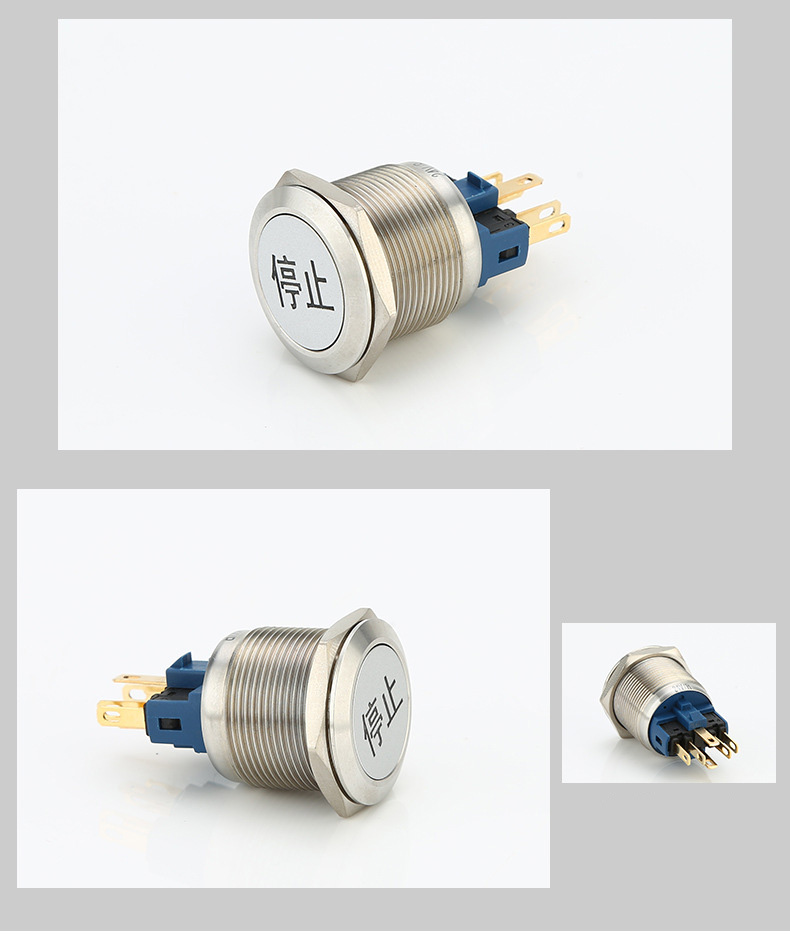

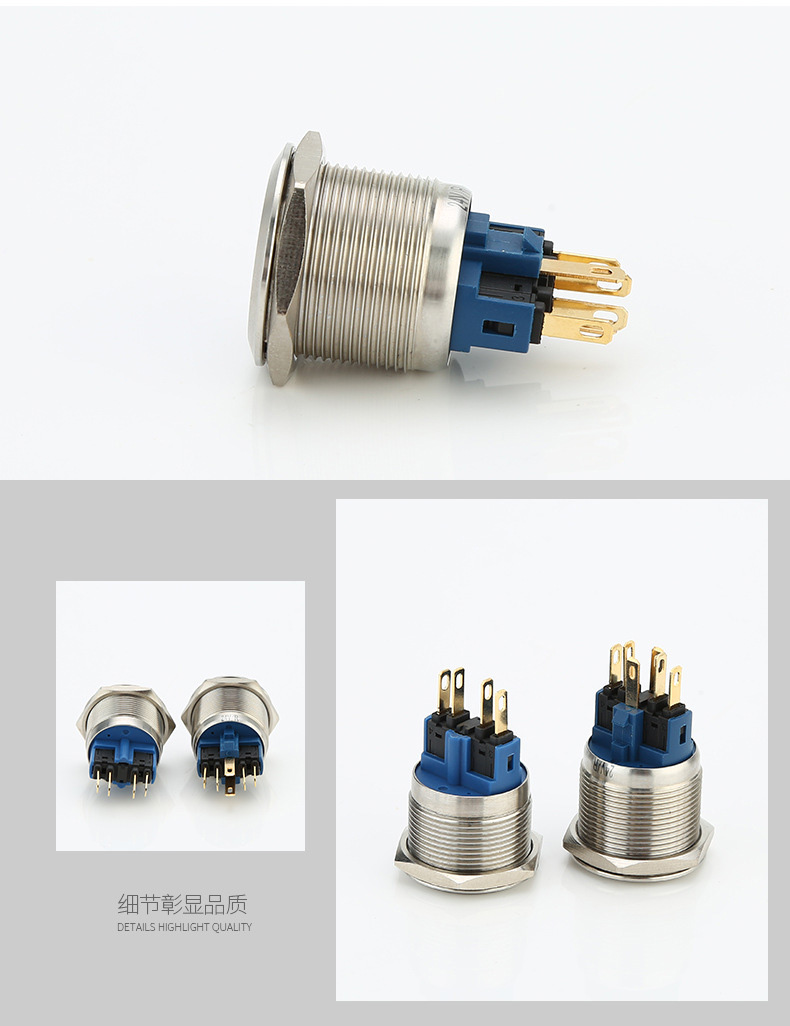

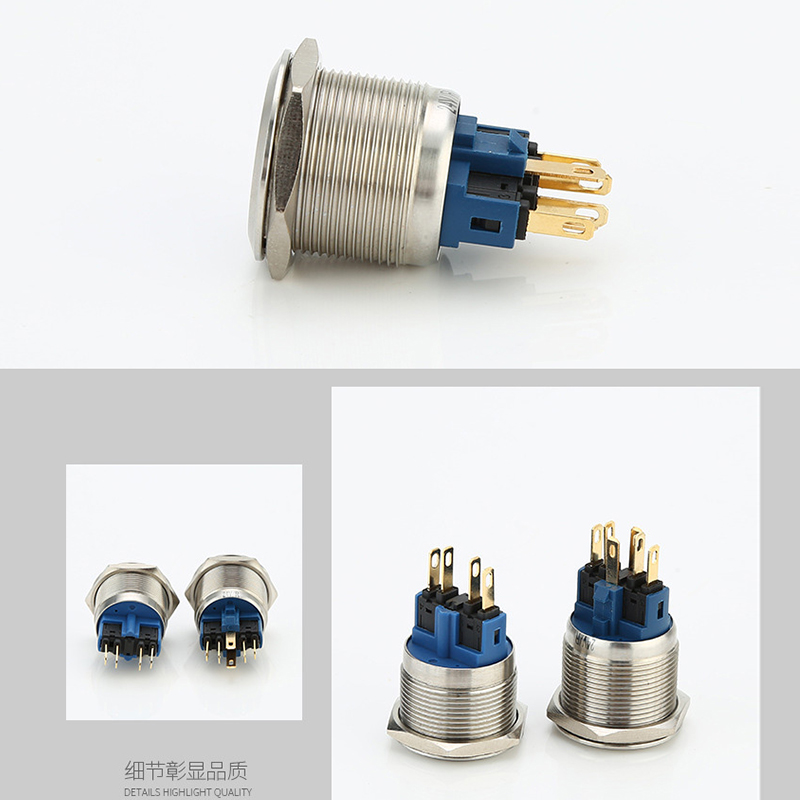

30mm Metal button switch self-recovery self-locking round power supply standard LED waterproof button small switch 3V5V6V48V
Specification:
Product name:30mm latching Anti Vandal Swtich
Material: Brass nickel plated / Stainless steel
LED color: Blue White Yellow Red Green Orange
Operation Type: Latching type push it-on, push again it-off Switch
Rating: 5A/250VAC LED
voltage: 12V or 3V, 5V, 24V, 110V, 220V
Contact Configuration: 1NO1NC
Head shape: High head Hole size: 25mm
| Product Name | Push button switch |
| Model | YL30S-A1PCZ |
| Mounting Hole | 30mm |
| Operation Type | latching |
| Switch Combination | 1NO1NC |
| Head Type | High head |
| Terminal type | Terminal |
| Enclosure Material | Brass nickel |
| Delivery Days | 3-7 days after payment received |
| Contact Resistance | 50 mΩ max |
| Insulation Resistance | 1000MΩ Min |
| Dielectric Intensity | 2000VAC |
| Operating Temperature | -20°C ~+55°C |
| Wire Connector / Wire soldering | Acceptable and with fast shipping |
| Accessories | Nut, Rubber ,Waterproof O-ring |

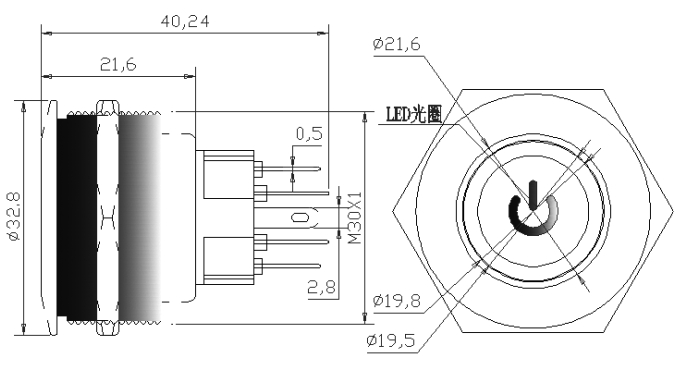

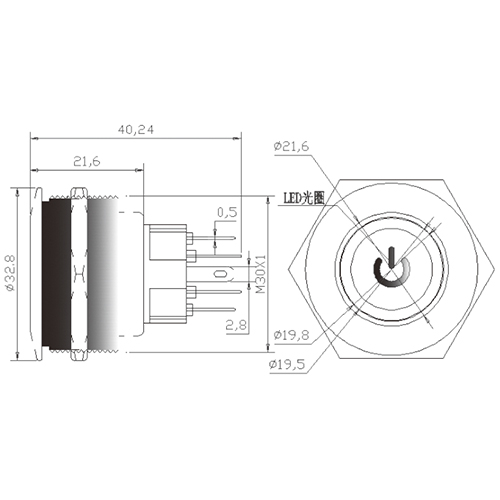

Drawing
Metal push button switches are widely used in various devices and products, including but not limited to:
Elevator control panels: Metal push button switches are used to select floors and control the operation of elevators.
Industrial equipment: Metal push button switches are used to control the start/stop and function selection of various mechanical equipment.
Automotive electronic systems: Metal push button switches are used in the vehicle’s control panel and driver’s operation controls.
Medical devices: Metal push button switches are used for the operation and control of medical instruments.
Smart home products: Metal push button switches are used in control panels and operation devices in smart home systems.
