push button on off switch 12v 220V

Short Description:

Product name: Illumination Push Button Switch/ Anti-vandal switch

Material: Brass nickel plated / Stainless steel

LED color: no

Operation Type: Momentary  type


Product Detail

Product Tags

Specification:

Product name: Illumination Push Button Switch/ Anti-vandal switch

Material: Brass nickel plated / Stainless steel

LED color: no

Operation Type: Momentary  type

Rating: 5A/250VAC

voltage: 12V or 3V, 5V, 24V, 110V, 220V

Contact Configuration: 1NO1NC

Head shape:  Flat head  Hole size: 22mm

Product Name Push button switch
Model YL22C-A11P
Mounting Hole 22mm
Operation Type Momentary
Switch Combination 1NO1NC
Head Type Flat head
Terminal type Terminal
Enclosure Material Brass nickel
Delivery Days 3-7 days after payment received
Contact Resistance 50 mΩ max
Insulation Resistance 1000MΩ Min
Dielectric Intensity 2000VAC
Operating Temperature -20°C ~+55°C
Wire Connector / Wire soldering Acceptable and with fast shipping
Accessories Nut, Rubber ,Waterproof O-ring

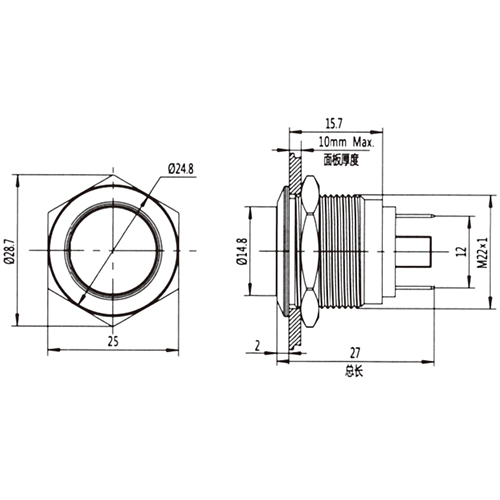

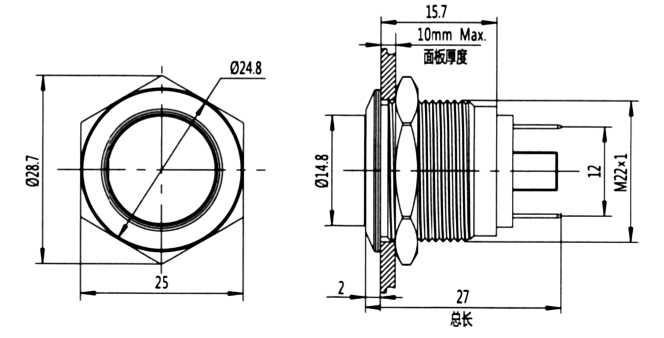

Drawing

YL22S-A11P1

YL22S-A11P YL22S-A11P-1 YL22S-A11P YL22S-A11P

6.1 6.2 6.3

Product introduction : Vandal-resistant metal push button switches are engineered to withstand intentional tampering and harsh conditions. It is ideal for public access control and security systems.

Application : Access Control: These switches are widely used in automatic doors, security doors and entrance systems in public facilities and commercial buildings to ensure safe and reliable operation.
