Knob metal button switch waterproof with dot light arrow two gear three gear metal button waterproof switch

Short Description:

Made of brass nickel plated material, strong and durable. High-grade appearance and nice touch feeling. Adopt rubber ring and hexagonal nut fixed, anti dust and waterproof, which make it great for outdoors use. Copper plating silver terminals for good conductive properties. Momentary type, push it-on, release it-off. Metal button head durable for longstanding press.


Product Detail

Product Tags

Features:

Made of brass nickel plated material, strong and durable. High-grade appearance and nice touch feeling. Adopt rubber ring and hexagonal nut fixed, anti dust and waterproof, which make it great for outdoors use. Copper plating silver terminals for good conductive properties. Momentary type, push it-on, release it-off. Metal button head durable for longstanding press.



Specification:

Product name19mm momentary push button switch

Material: Brass nickel plated / Stainless steel

LED color: yes

Operation Type:Latching  type

Rating: 5A/250VAC

voltage: 12V or 3V, 5V, 24V, 110V, 220V

Contact Configuration: 1NO1NC

Head shape: Flat head  Hole size: 22mm

Product Name Push button switch
Model YL22C-E11X
Mounting Hole 22mm
Operation Type  Latching
Switch Combination 1NO
Head Type Flat head
Terminal type Pins Terminal
Enclosure Material Brass nickel
Delivery Days 3-7 days after payment received
Contact Resistance 50 mΩ max
Insulation Resistance 1000MΩ Min
Dielectric Intensity 2000VAC
Operating Temperature -20°C ~+55°C
Wire Connector / Wire soldering Acceptable and with fast shipping
Accessories Nut, Rubber ,Waterproof O-ring

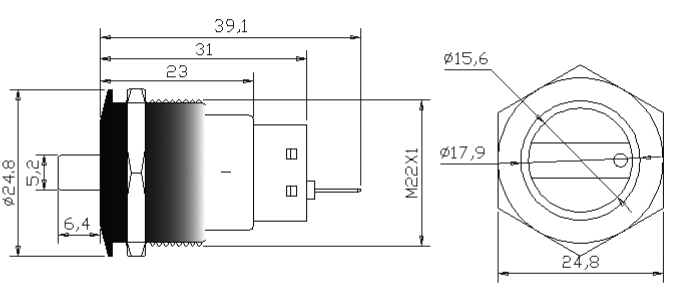

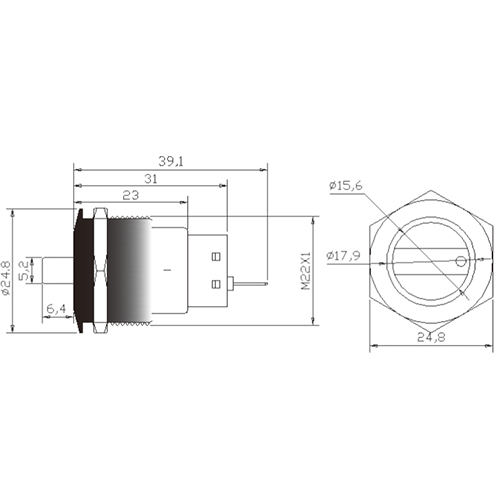

Drawing

YL22S-E11X1

YL22S-E11X YL22S-E11X-1 YL22S-E11X-2 YL22S-E11X YL22S-E11X

6.1 6.2 6.3

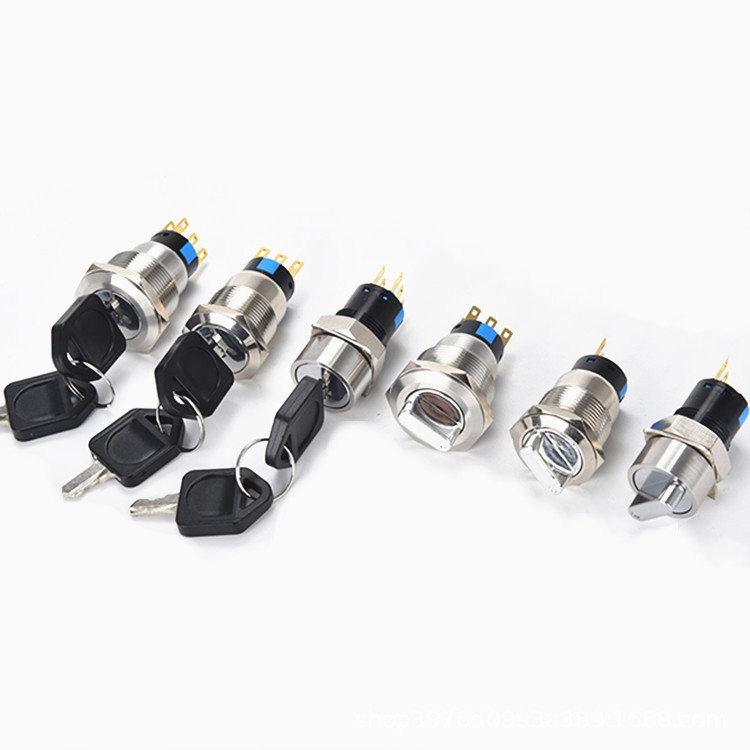

Product introduction : The Keyed Tamper Resistant Switch is an advanced switch designed for applications requiring security and durability. The switch features rugged stainless steel construction and a unique key-operated mechanism to provide reliable performance in challenging environments. Its tamper-resistant design makes it suitable for security systems, access control panels and outdoor equipment.

Application: Security Systems: Keyed tamper-resistant switches are commonly used in security systems, access control panels, and alarm systems to provide a secure and tamper-resistant interface. Its key-operated mechanism ensures authorized access and prevents unauthorized tampering, making it an ideal solution for protecting sensitive areas and equipment.
