Corded led waterproof signal light
Features:
The metal indicator light features a durable metal housing and is designed for a wide range of industrial applications. With its robust construction and high visibility, this indicator light is ideal for use in control panels, machinery, and automation systems.
Specification:
Product name: metal indicator light
Material: Brass nickel plated / Stainless steel
LED color: Blue White Yellow Red Green Orange
Operation Type: Momentary
Rating: 5A/250VAC LED
voltage: 12V or 3V, 5V, 24V, 110V, 220V
Contact Configuration: 1NO1NC
Head shape: Flat head Hole size:10mm
| Product Name | Push button switch |
| Model | YL10C-XD11 |
| Mounting Hole | 10mm |
| Operation Type | momentary |
| Switch Combination | 1NO1NC |
| Head Type | Flat head |
| Terminal type | Screw Terminal |
| Enclosure Material | Brass nickel |
| Delivery Days | 7 -10days after payment received |
| Contact Resistance | 50 mΩ max |
| Insulation Resistance | 1000MΩ Min |
| Dielectric Intensity | 2000VAC |
| Operating Temperature | -20°C ~+55°C |
| Wire Connector / Wire soldering | Acceptable and with fast shipping |
| Accessories | Nut, Rubber ,Waterproof O-ring |

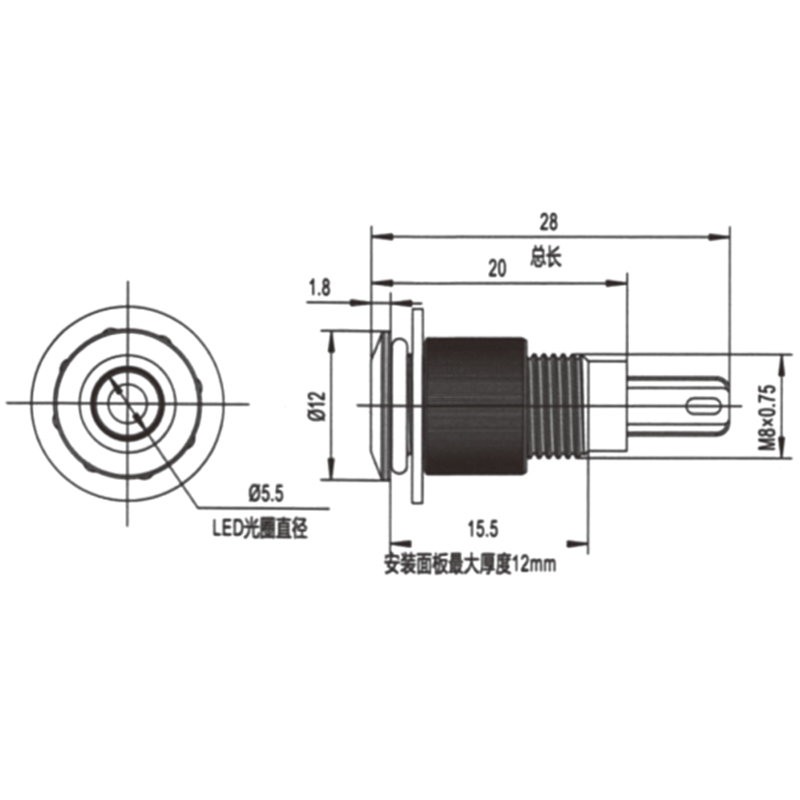

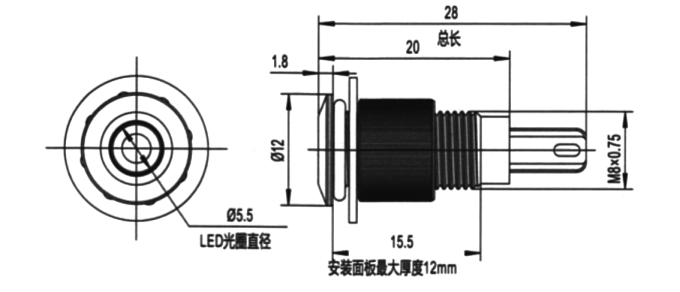

Drawing
Product features: Metal indicator lights feature long-lasting LED technology, are energy efficient and require minimal maintenance. Its low power consumption and longer lifespan help save costs over time.
Related Applications:
Building automation systems
Architectural lighting
Decorative lighting installations
Product Introduction: The metal indicator light is specifically engineered for use in hazardous locations where flammable gases, vapors, or combustible dusts may be present. Its robust enclosure and high-visibility indicators make it suitable for oil and gas facilities, chemical plants, and other potentially explosive atmospheres.
