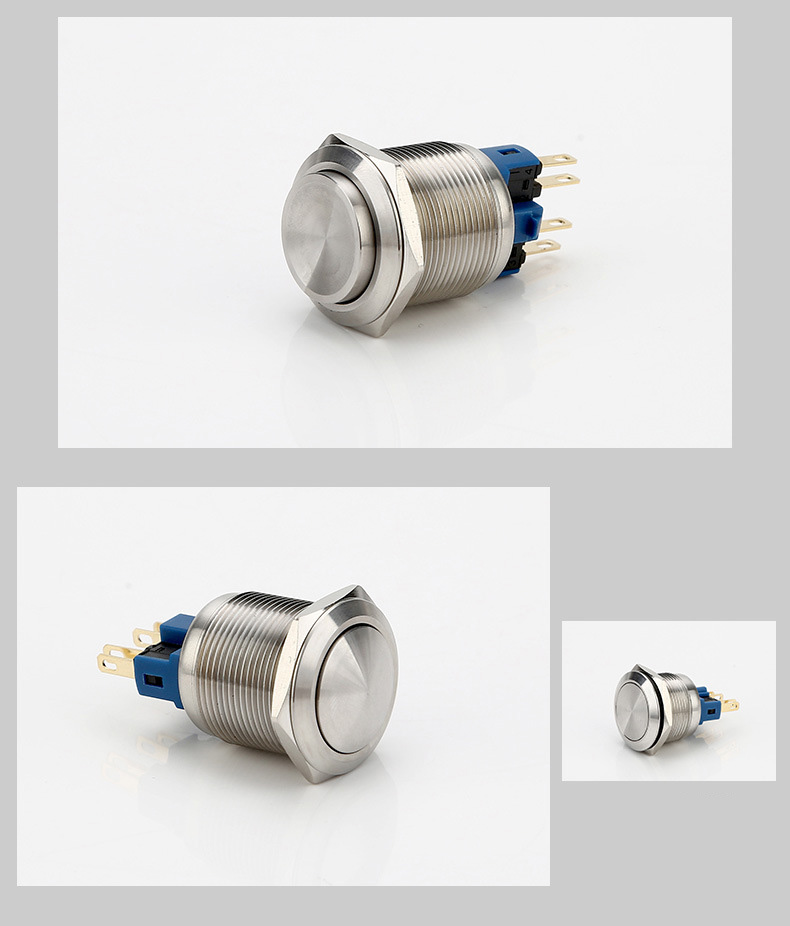

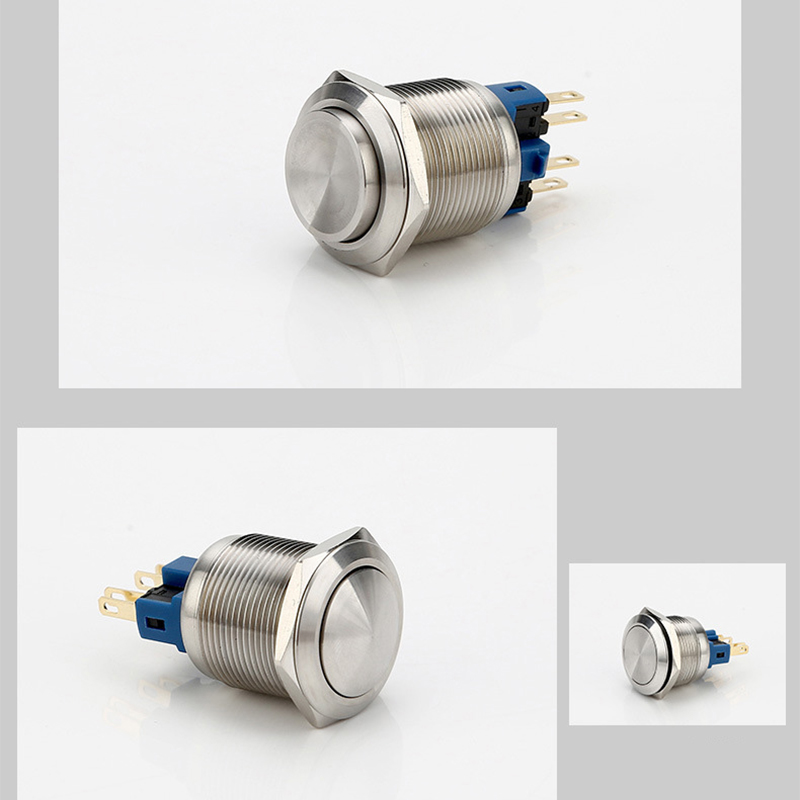

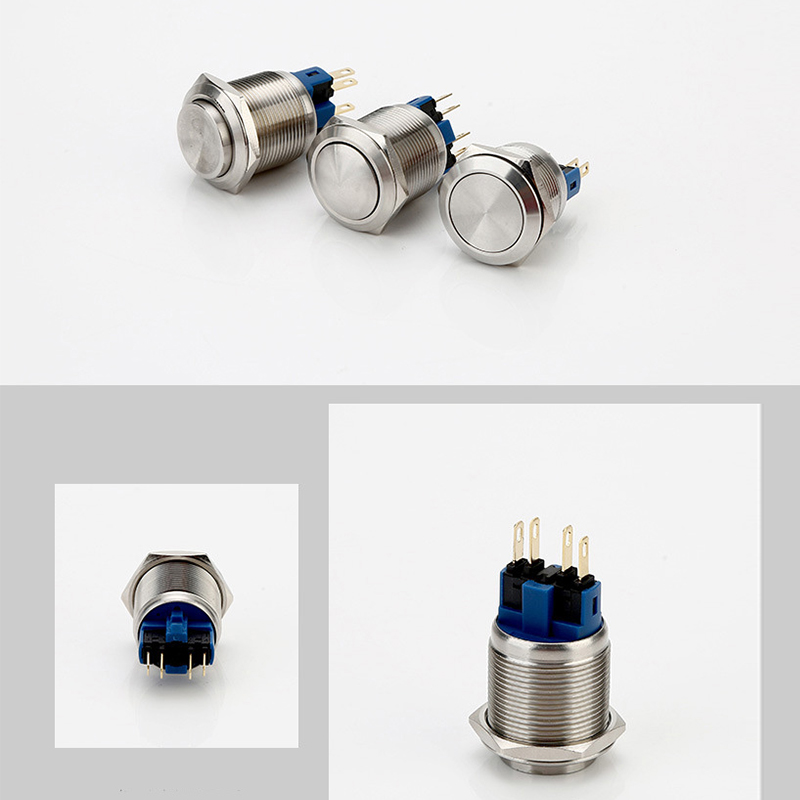

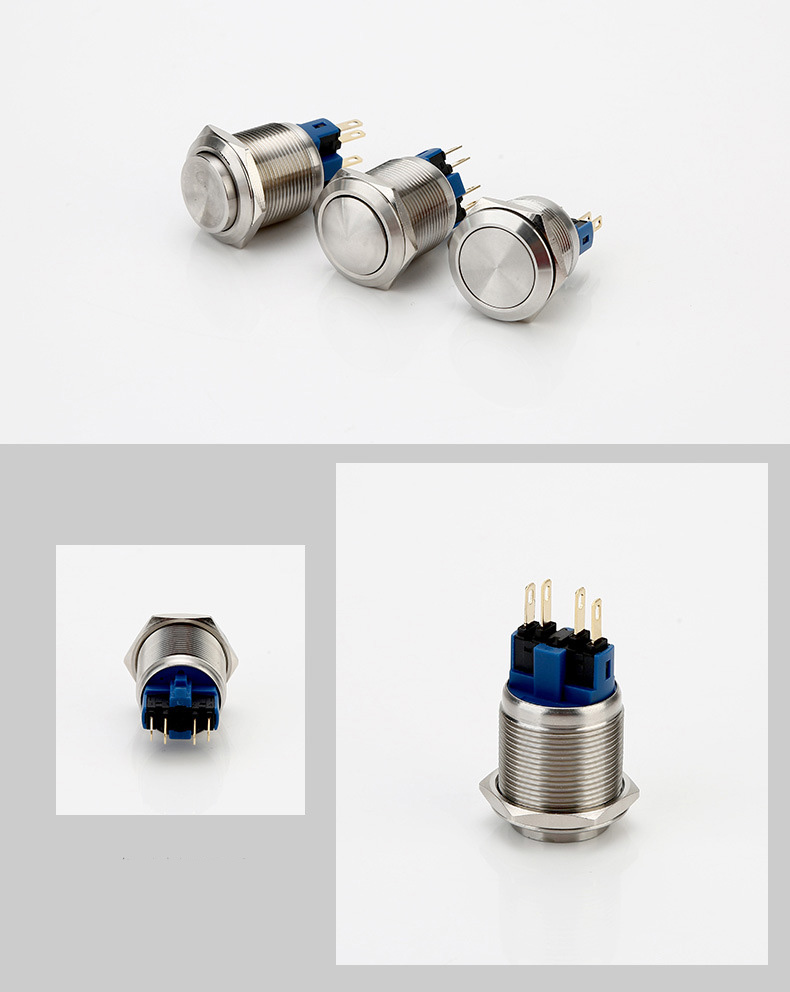

stainless steel momentary push button switch
Specification:
Product name: stainless steel momentary push button switch
Material: Brass nickel plated / Stainless steel
LED color: Blue White Yellow Red Green Orange
Operation Type:Latching type Rating: 5A/250VAC LED
voltage: 12V or 3V, 5V, 24V, 110V, 220V
Contact Configuration: 1NO
Head shape: High head Hole size: 22mm
| Product Name | Push button switch |
| Model | YL22C-B11QZ |
| Mounting Hole | 22mm |
| Operation Type | Latching |
| Switch Combination | 1NO |
| Head Type | DOME |

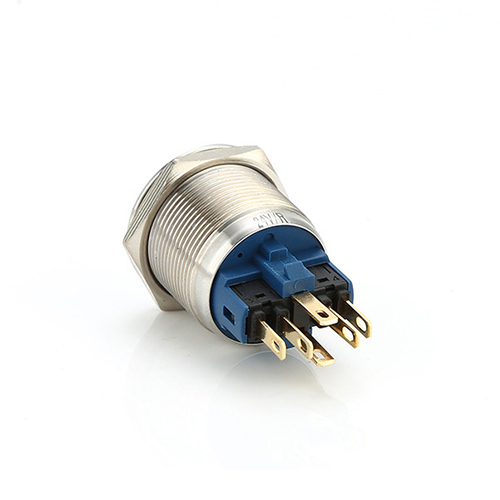

| Terminal type | PINS |
| Enclosure Material | Brass nickel |
| Delivery Days | 3-7 days after payment received |
| Contact Resistance | 50 mΩ max |
| Insulation Resistance | 1000MΩ Min |
| Dielectric Intensity | 2000VAC |
| Operating Temperature | -20°C ~+55°C |
| Wire Connector / Wire soldering | Acceptable and with fast shipping |
| Accessories | Nut, Rubber ,Waterproof O-ring |

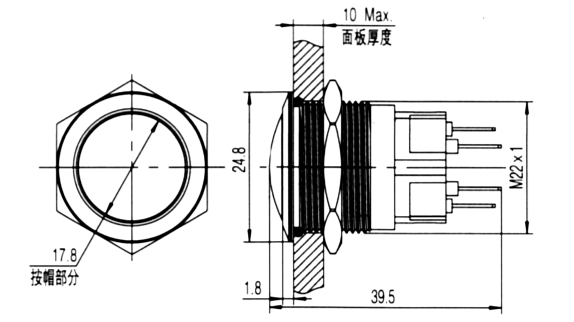

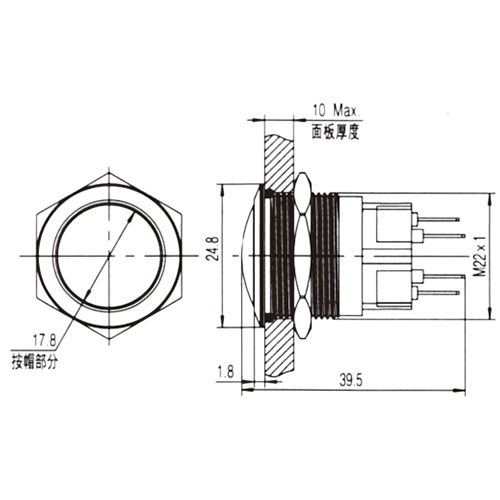

Drawing
Product features : Metal push button switches come with a variety of mounting options and can be easily integrated into a variety of control panels and enclosures. Its adaptability and compatibility to different installation requirements make it a flexible and convenient choice for different applications across industries.
Application : Automation systems: Metal push-button switches are integrated into automation systems and control cabinets, providing a reliable interface for starting and managing automated processes in manufacturing, packaging and logistics operations. Its flexible installation capabilities enable seamless integration into automated equipment and machinery.
