on off on illuminated push button switch
Specification:
Product name: on off on illuminated push button switch
Material: Brass nickel plated / Stainless steel
LED color: Blue White Yellow Red Green Orange
Operation Type: Latching type push it-on, push again it-off Switch
Rating: 5A/250VAC LED
voltage: 12V or 3V, 5V, 24V, 110V, 220V

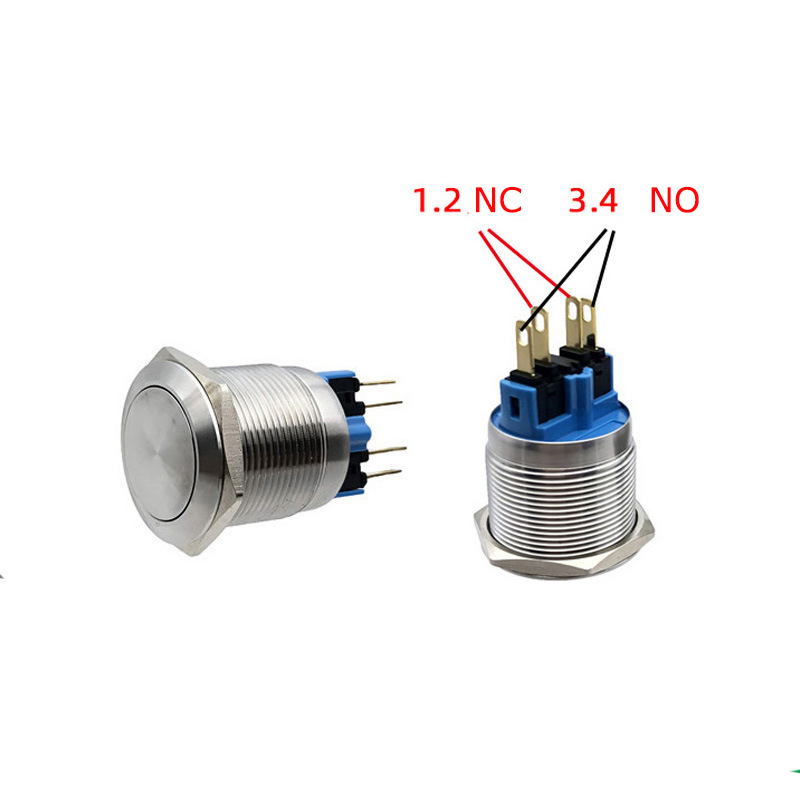

Contact Configuration: 1NO1NC
Head shape: Flat head Hole size: 22mm
| Product Name | Push button switch |
| Model | YL22C-B11PZ |
| Mounting Hole | 22mm |
| Operation Type | latching |
| Switch Combination | 1NO1NC |
| Head Type | Falt head |
| Terminal type | Terminal |
| Enclosure Material | Brass nickel |
| Delivery Days | 3-7 days after payment received |
| Contact Resistance | 50 mΩ max |
| Insulation Resistance | 1000MΩ Min |
| Dielectric Intensity | 2000VAC |
| Operating Temperature | -20°C ~+55°C |
| Wire Connector / Wire soldering | Acceptable and with fast shipping |
| Accessories | Nut, Rubber ,Waterproof O-ring |

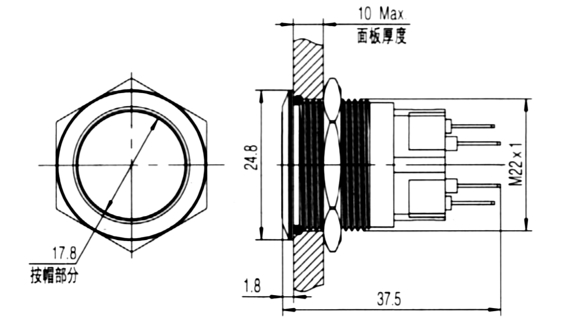

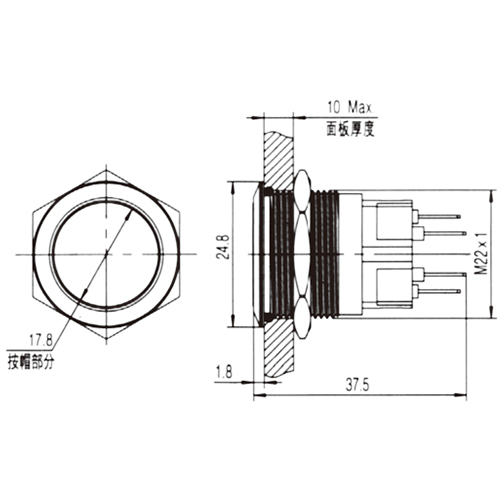

Drawing
Product Features : The metal push button switch adopts a stylish and ergonomic design, providing users with a comfortable and intuitive operating experience. Its smooth and responsive button operation provides precise control, making it ideal for applications where accuracy and ease of operation are critical.
Application : Medical Equipment: Metal push button switches are used in medical equipment such as diagnostic equipment and patient monitoring systems. Its user-friendly design and precise actuation capabilities facilitate seamless operation of critical medical instruments, ensuring accurate input and control by healthcare professionals.
