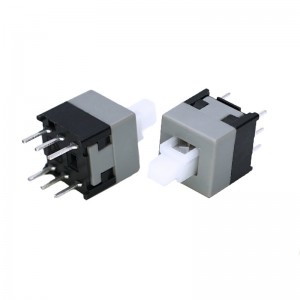

6 pins 8.5mm push button switch Computer Case Power Button switch

Short Description:

Product name: Push Button Switch/ self locking switch

Operation Type: Momentary type /Latching type

Rating: DC 30V 0.1A

voltage: 12V or 3V, 5V, 24V, 110V, 220V

Contact Configuration: 1NO1NC

Computer Case Power Button

1. Standard Term: Power Button

This is the universal term for the primary switch on a computer case. Its symbol is the broken circle with a vertical line (IEC 5009), which is the international standard symbol for power.

2. Primary Function:

The primary function of the power button is to send a momentary signal to the computer’s motherboard to initiate the boot process. In modern systems, it is a “soft” switch, meaning it doesn’t physically cut power but instructs the operating system to begin a controlled shutdown or hibernation when pressed briefly while the computer is running.

3. Physical Design and Features:

∙Momentary Switch: It is not a latching or toggle switch. It is designed to be pressed and released, making a momentary contact.
∙Tactile Feedback: Most buttons provide physical or audible feedback (a click) to confirm the press.
∙LED Indicator: It is almost always integrated with a Light-Emitting Diode (LED). This LED illuminates (often in white, blue, or green) to indicate that the computer is powered on. In sleep mode, it may blink.

4. Common Location:

The power button is typically located on the front panel of the computer case, often on the top-right or top-left section for easy access. On full-tower cases, it may be on the top face.

5. Related Button: Reset Button

Many computer cases also feature a secondary, smaller button called the Reset Button. This button forces an immediate hardware reboot by restarting the motherboard’s circuitry, which is useful if the operating system becomes completely unresponsive. It is usually located directly next to or near the power button.

Send email to us

Product Detail

Product Tags

6 pins 8.5mm push button siwtch Computer Case Power Button switch,
Computer Case Power Button,

Specification

Product Name	Push button switch
Model	KFC-05B-850-6GZ
Operation Type	latching
Switch Combination	1NO1NC
Head Type	Flat head
Terminal type	Terminal
Enclosure Material	Brass nickel
Delivery Days	3-7 days after payment received
Contact Resistance	50 mΩ max
Insulation Resistance	1000MΩ Min
Operating Temperature	-20°C ~+55°C

Drawing

KFC-05B-850-6GZ
KFC-05B-850-6GZ (1)
KFC-05B-850-6GZ (3)

Product description

Unleash the power of control with our Push Button Switch. Crafted for precision and ease of use, this switch is the cornerstone of user-friendly control systems.

The Push Button Switch’s versatile design suits applications ranging from gaming controllers to industrial control panels. Its tactile response enhances user confidence, while its robust construction ensures lasting performance even in challenging conditions.

Choose our Push Button Switch for a seamless and responsive control experience.

Unlock a new level of control with our Self-Locking Switch. Engineered for precision and convenience, this switch is the answer to your locking needs.

The Self-Locking Switch’s unique mechanism ensures it remains in position after activation, eliminating the risk of accidental adjustments. This makes it perfect for applications like aviation, gaming controllers, and industrial machinery. Its durable build ensures it can withstand frequent use without compromising performance.

Invest in precise control with our Self-Locking Switch.

Application

Vending Machines

Vending machines use push button switches to allow users to select products and initiate transactions. These switches ensure a seamless user experience and accurate product dispensing while preventing accidental selections.

Aircraft Cockpit Controls

In aviation, precision and safety are paramount. Self-Locking Switches are used in aircraft cockpit controls, ensuring that settings for instruments and avionics remain locked in place during flight, even in turbulent conditions.

This is the universal term for the primary switch on a computer case. Its symbol is the broken circle with a vertical line (IEC 5009), which is the international standard symbol for power.
he primary function of the power button is to send a momentary signal to the computer’s motherboard to initiate the boot process. In modern systems, it is a “soft” switch, meaning it doesn’t physically cut power but instructs the operating system to begin a controlled shutdown or hibernation when pressed briefly while the computer is running.
