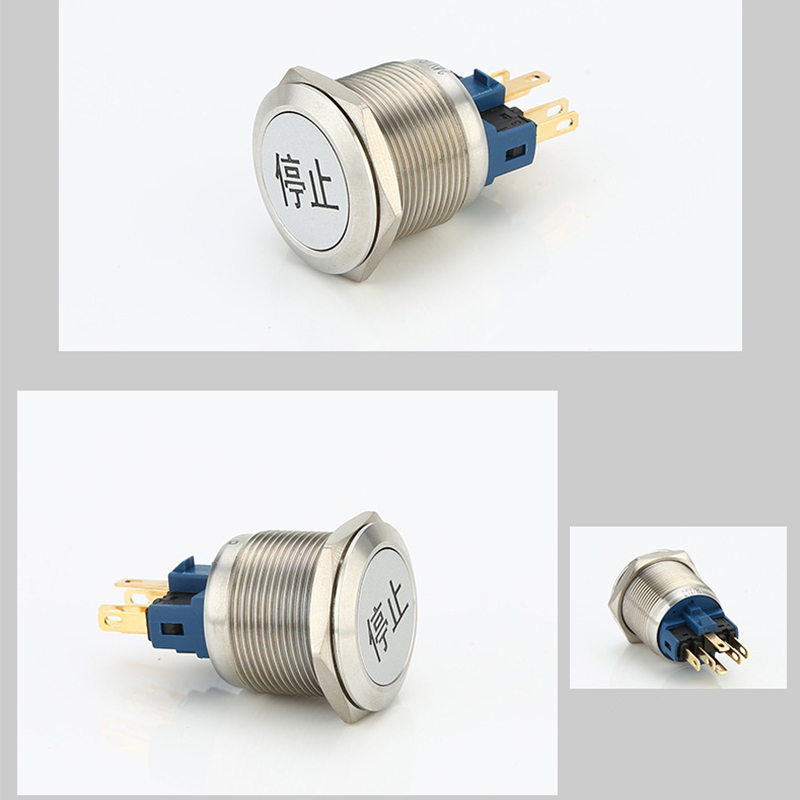

24V momentary action switch
Specification:
Product name:24V momentary action switch
Material: Brass nickel plated / Stainless steel
LED color: No
Operation Type: Momentary Rating: 5A/250VAC LED
voltage: 12V or 3V, 5V, 24V, 110V, 220V
Contact Configuration: 1NO1NC
Head shape: High head Hole size: 22mm
| Product Name | Push button switch |
| Model | YL22C-B11P |
| Mounting Hole | 22mm |
| Operation Type | Momentary |
| Switch Combination | 1NO1NC |
| Head Type | High head |
| Terminal type | Terminal |
| Enclosure Material | Brass nickel |
| Delivery Days | 3-7 days after payment received |
| Contact Resistance | 50 mΩ max |
| Insulation Resistance | 1000MΩ Min |
| Dielectric Intensity | 2000VAC |
| Operating Temperature | -20°C ~+55°C |
| Wire Connector / Wire soldering | Acceptable and with fast shipping |
| Accessories | Nut, Rubber ,Waterproof O-ring |

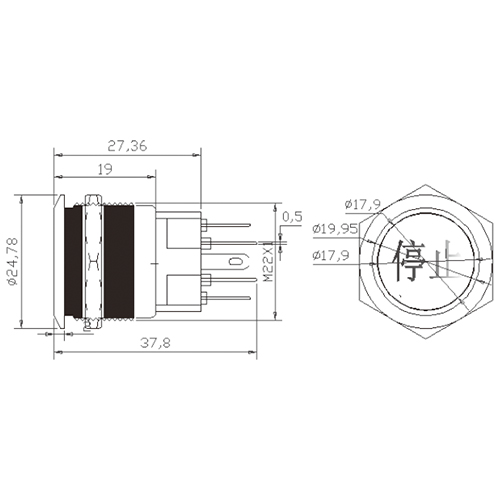

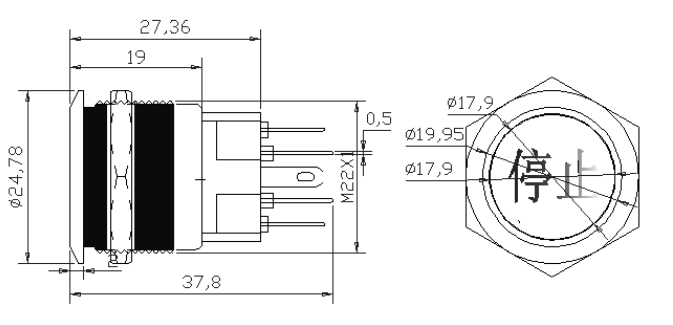

Drawing
Product introduction : Our metal push button switches are available in a variety of contact configurations, including momentary and latching options, to meet different circuit control requirements.
Application : Custom Control Panels: OEM manufacturers and custom control panel manufacturers often use these switches to create custom control interfaces for specialized equipment and machinery.
